Specifiche (EN) - Barnaul KD8334 (ID: 75834)
| Type | Knuckle joint press |
| Manufacturer | Barnaul |
| Model | KD8334 |
| Capacity | 250 tons |
| Nominal gain | 2500 kN |
| Slider stroke | 120 mm |
| The frequency of the continuous strokes of the slide | 60 min-1 |
| Slider stroke to its lowest position | |
| with the development of a nominal force of | 1.2 mm |
| with the development of an effort 25% of the nominal | 15 mm |
| The distance between the die plate and the slide in its lower position with the upper position of adjustment | 300 mm |
| Sizes of stamped plate | |
| from left to right | 400 mm |
| front back | 400 mm |
| Slider size front-back | 320 mm |
| Ejector stroke | |
| top | 16 mm |
| bottom | 70 mm |
| Ejector force | |
| top | 25 kN |
| bottom | 80 kN |
| Power consumption by the control system | 7.3 kW |
| Working pressure of compressed air | 0.45 MPa |
| Air consumption, m3 / stroke | 0.009 |
| Dimensions of the press | |
| left to right | 1760 mm |
| front back | 1130 mm |
| Height above the floor | 2600 mm |
| Weight no more than | 5515 kg |

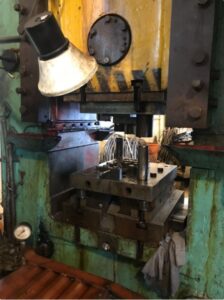

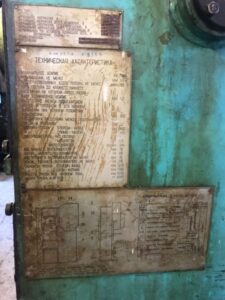

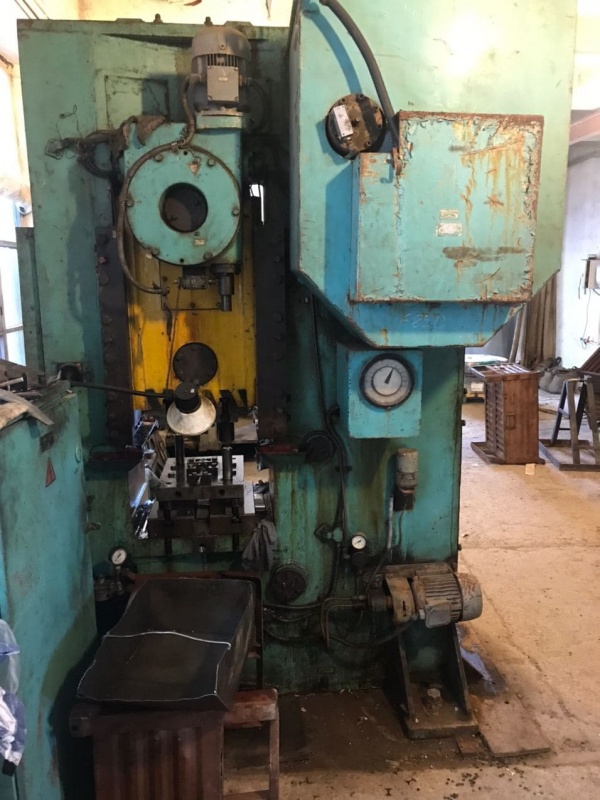

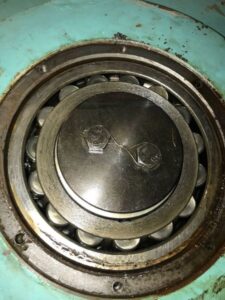

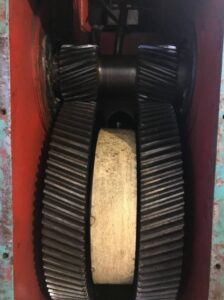

Fotografie - Barnaul KD8334 (ID: 75834)
Offerta commerciale (in vendita) - Pressa a ginocchiera Barnaul KD8334 - 250 ton (ID:75834). Tutti i dettagli di questa offerta (costo, termini di pagamento e consegna) possono essere ottenuti dal nostro responsabile facendo clic sul pulsante "Invia richiesta" . Possiamo anche aiutare a trovare altre apparecchiature.Invia richiesta
