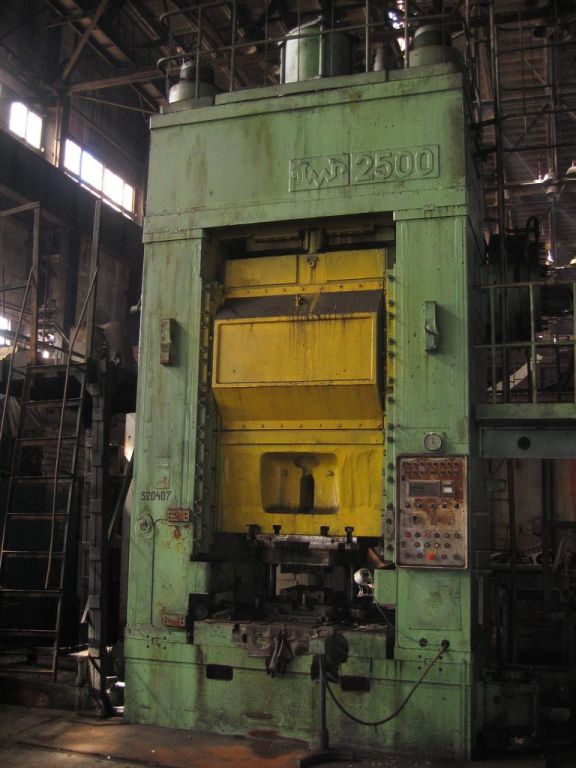

Pressa a ginocchiera TMP Voronezh KB8044 - 2500 ton
Specifiche tecniche (EN) - Pressa a ginocchiera TMP Voronezh KB8044 - 2500 ton (ID: S85117)
| Type | Knuckle joint press |
| Manufacturer | TMP Voronezh |
| Model | KB8044 |
| Year | 1992 ton |
| Nominal force | 2500 ton |
| Ram stroke | 190 mm |
| Number of strokes in 1 minute | 14-20 |
| Shut height | 560 mm |
| Bolster plate-to-ram adjustable stroke | 15 |
| Ram course in bottom position with max. power | 4,5 |
| Table size | 1530 x 1530 mm |
| Ram size front-to-back | 900 mm |
| Distance between slides | 1420 mm |
| Main motor | 77 kW, 380 V |
| Overall dimensions | 4920 x 3340 x 5980 mm |
| Weight | 125480 kg |
