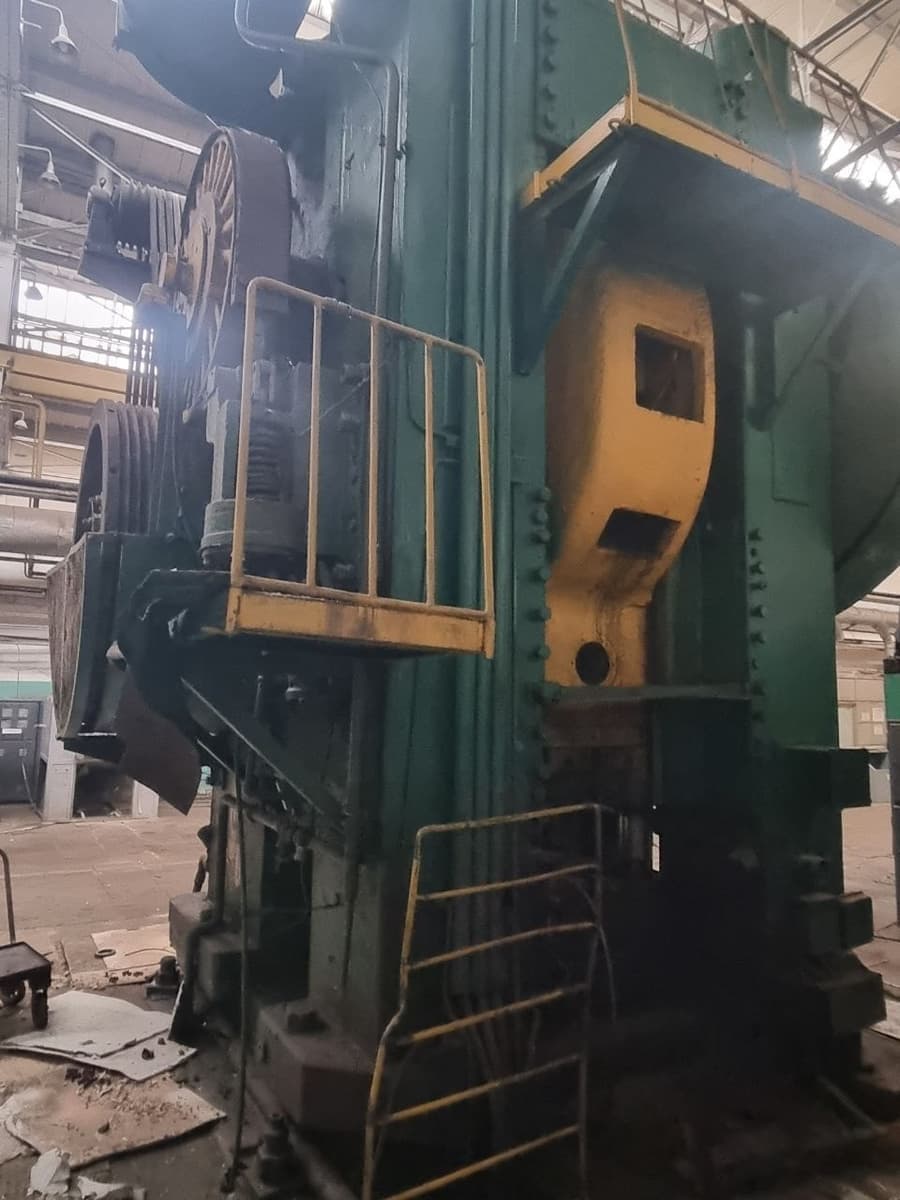

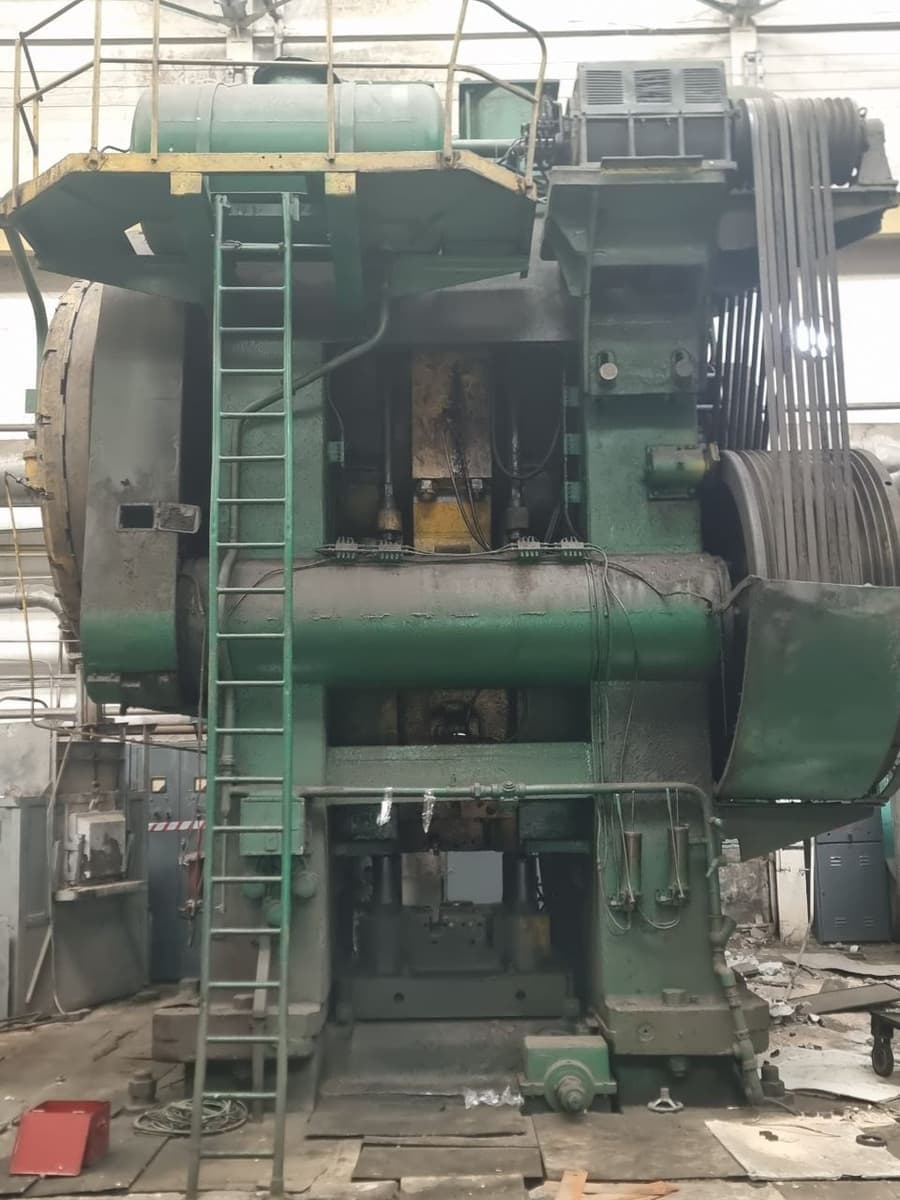

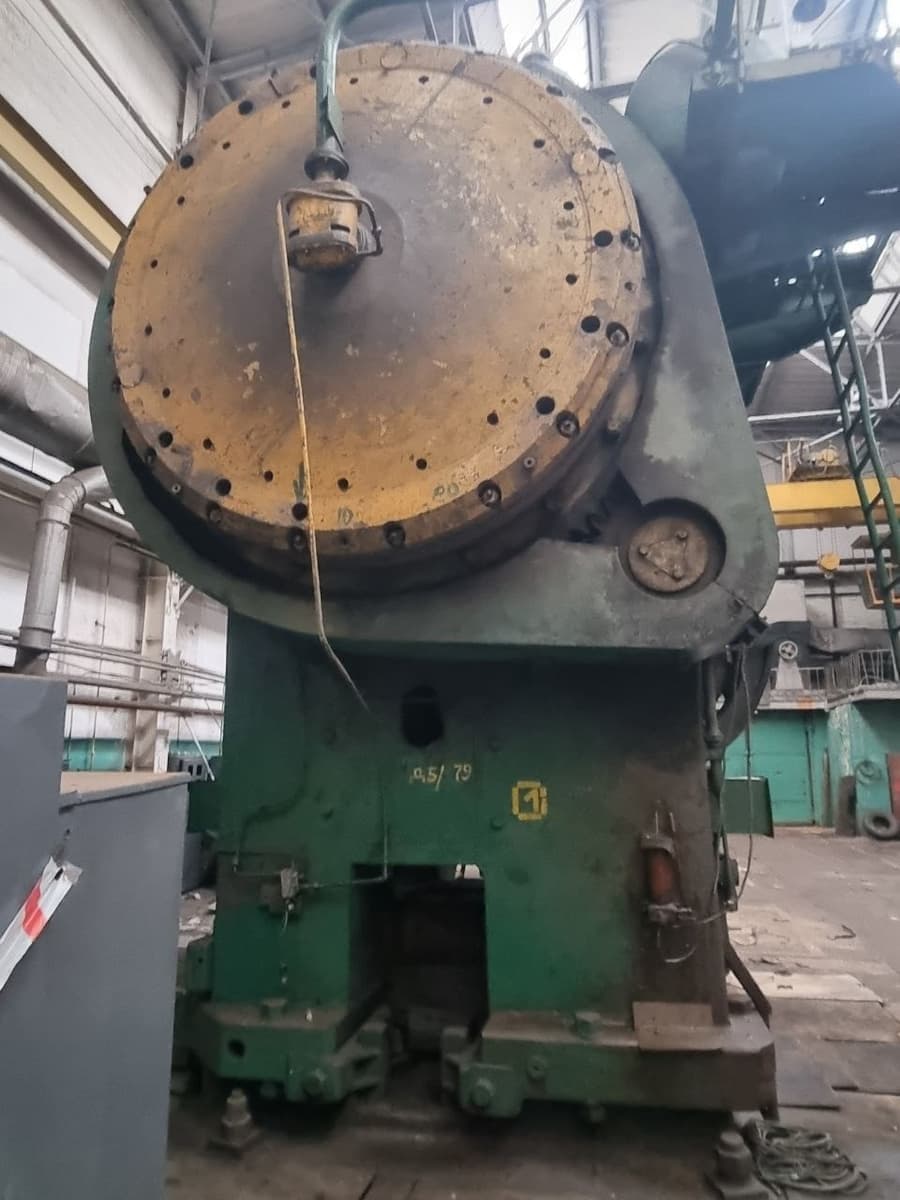

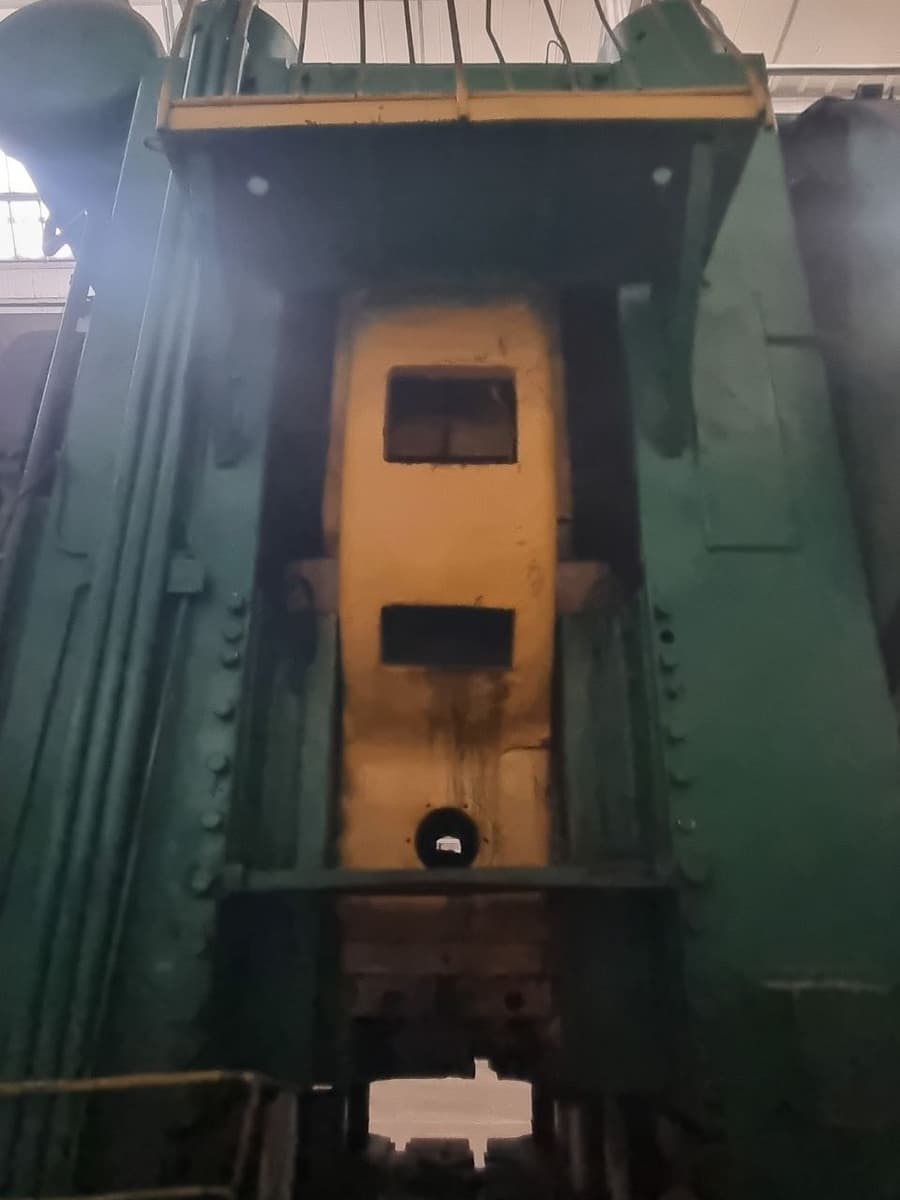

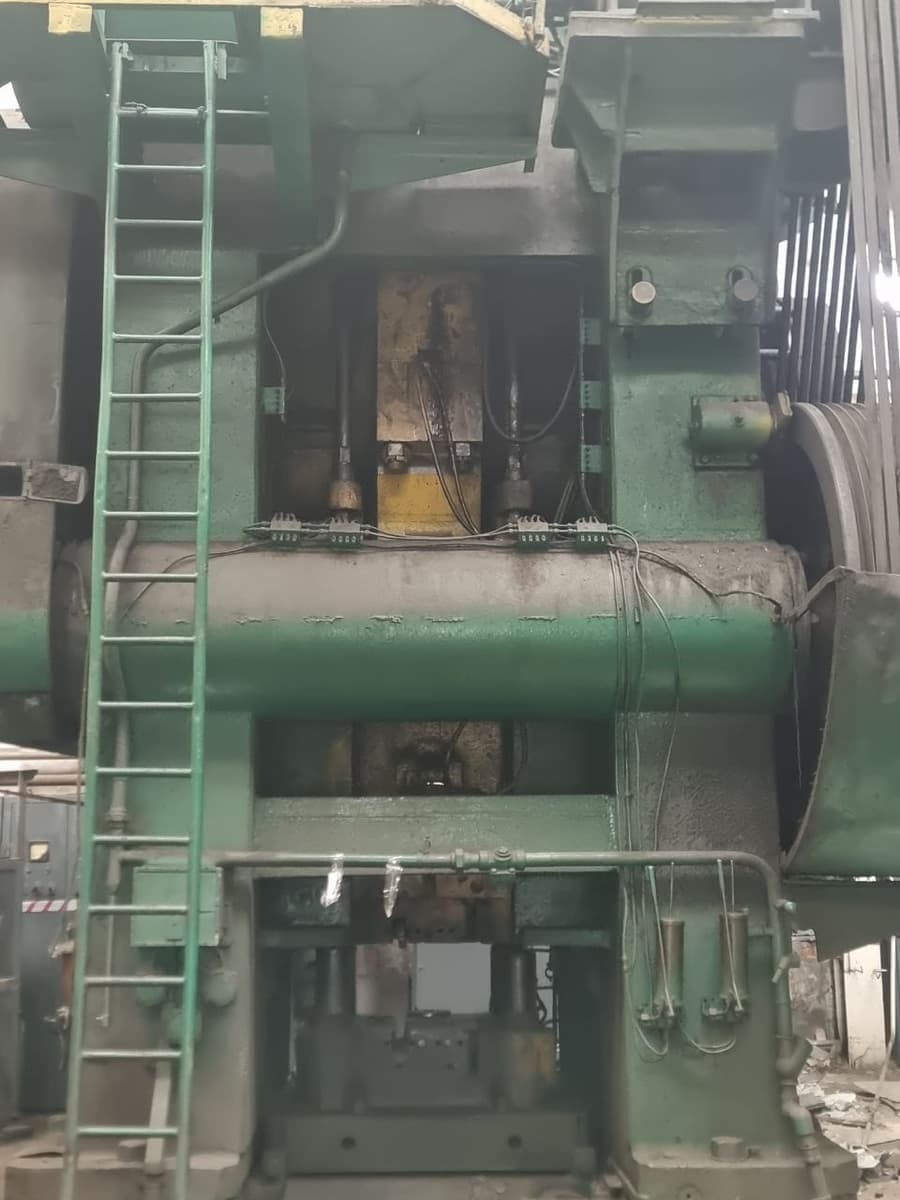

Pressa per stampaggio a caldo NKMZ Kramatorsk PKKSH 4000 - 4000 ton
Specifiche tecniche (EN) -
Pressa per stampaggio a caldo NKMZ Kramatorsk PKKSH 4000 - 4000 ton (ID: S91098)
| Type | Hot forging press |
| Manufacturer | NKMZ Kramatorsk |
| Model | PKKSH 4000 |
| Nominal force | 4000 ton |
| Slide stroke | 400 mm |
| Number of slide continuous strokes per minute |
50 |
| Shut height (distance between bed in top position and slide bolster plate, stroke down) |
1000 mm |
| Bed adjustment | 15 mm |
| Distance between uprights clear | 1660 |
| Slide dimensions | |
| left-to-right | 1420 mm |
| front-to-back | 1420 mm |
| Bed dimensions | |
| left-to-right | 1570 mm |
| front-to-back | 1620 mm |
| Upper knockout stroke | 60 mm |
| Down knockout stroke | 125 mm |
| Uprights openings dimensions | |
| width | 770 mm |
| height | 995 mm |
| Main motor power | 185 kW |
| Overall dimensions | |
| left-to-right | 6100 mm |
| front-to-back | 4710 mm |
| height | 8680 mm |
| Height above floor level | 6820 |
| Mass | 400 ton |
