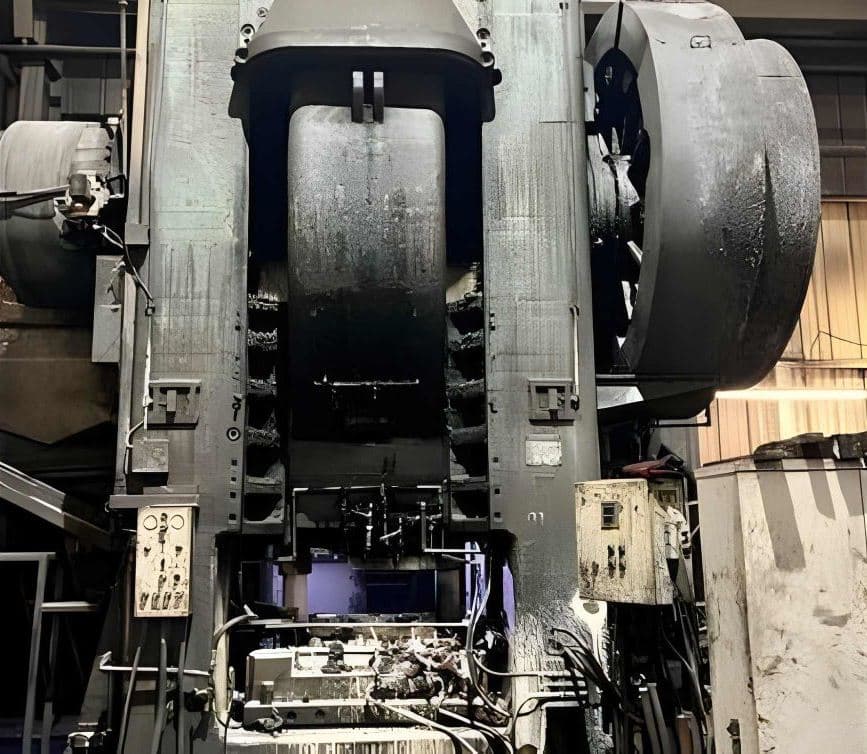

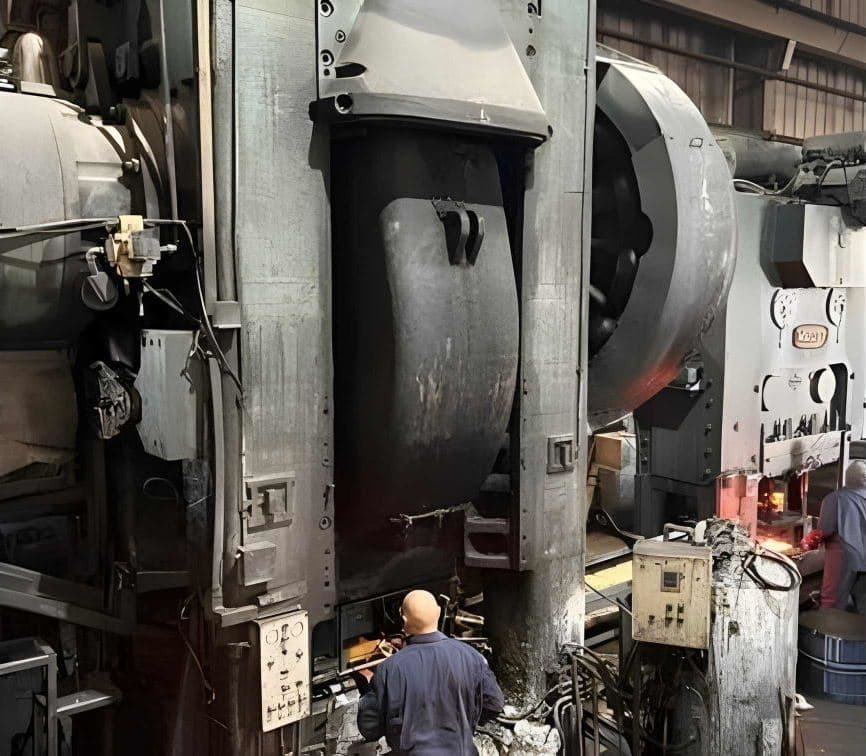

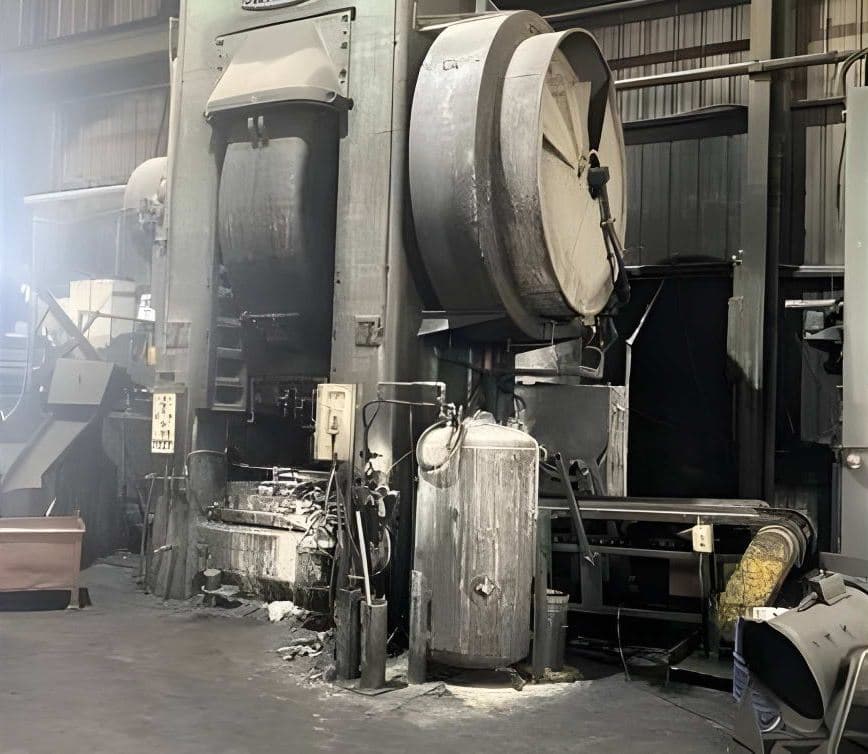

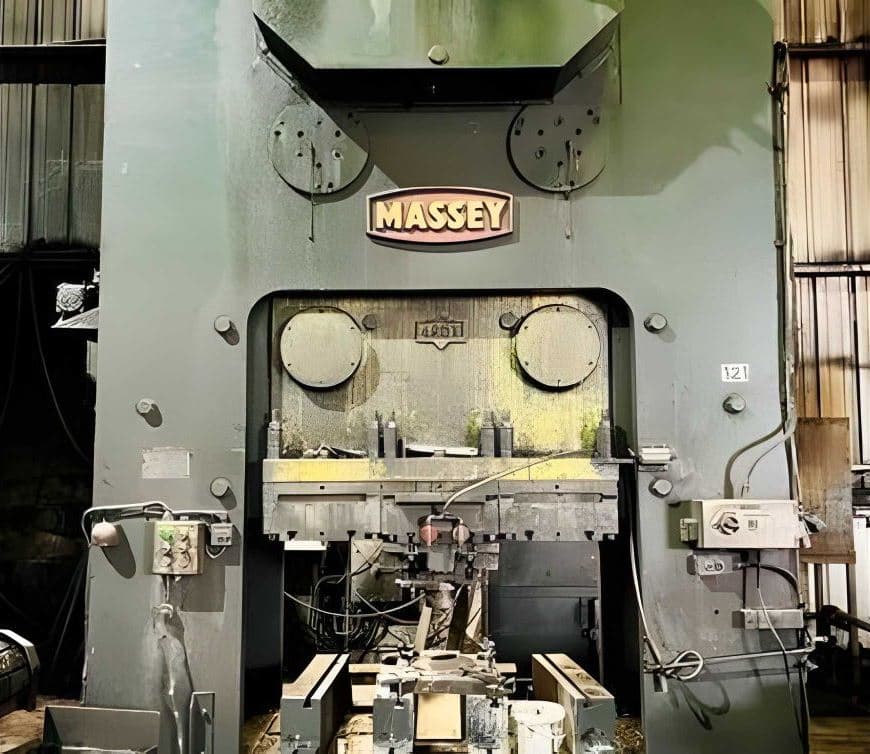

Pressa per stampaggio a caldo Massey 2800 - 2800 ton
Specifiche tecniche (EN) -
Pressa per stampaggio a caldo Massey 2800 - 2800 ton (ID: S91152)
| Type | Hot forging press |
| Manufacturer | Massey |
| Model | 2800 |
| Capacity | 2800 ton |
| Stroke Length | 355 mm |
| SPM | 60 |
| Max Working Strokes/Min | 20 |
| Shut Height with Ram at TDC | 1245 mm |
| Shut Height with Ram at BDC | 890 mm |
| Shut Height Stroke Adjustment | +5 mm & -14 mm |
| Ram Dimensions | 1219 x 1118 mm |
| Bed Size | 1219 x 1040 mm |
| Width Between Columns | 1422 mm |
| Width of Opening in Columns | 864 mm |
| Ram Ejector Stroke | 35 mm |
| Table Ejector Stroke | 0-60 mm |
| Journal Diameter | 584 mm |
| Shaft Diameter at Eccentric | 940 mm |
| Wedge to Floor | 585 mm |
| Wedge Dimensions (Front to Back) | 1040 mm |
| Floor Space | 3650 mm x 4950 mm |
| Height Above Floor | 5943 mm |
| Motor Size (Continuous Rating) | 150 KW |
| Motor Speed at Full Load | 985 rpm |
| Weight (Gross) Including Girders and Preload | 170 tons |
