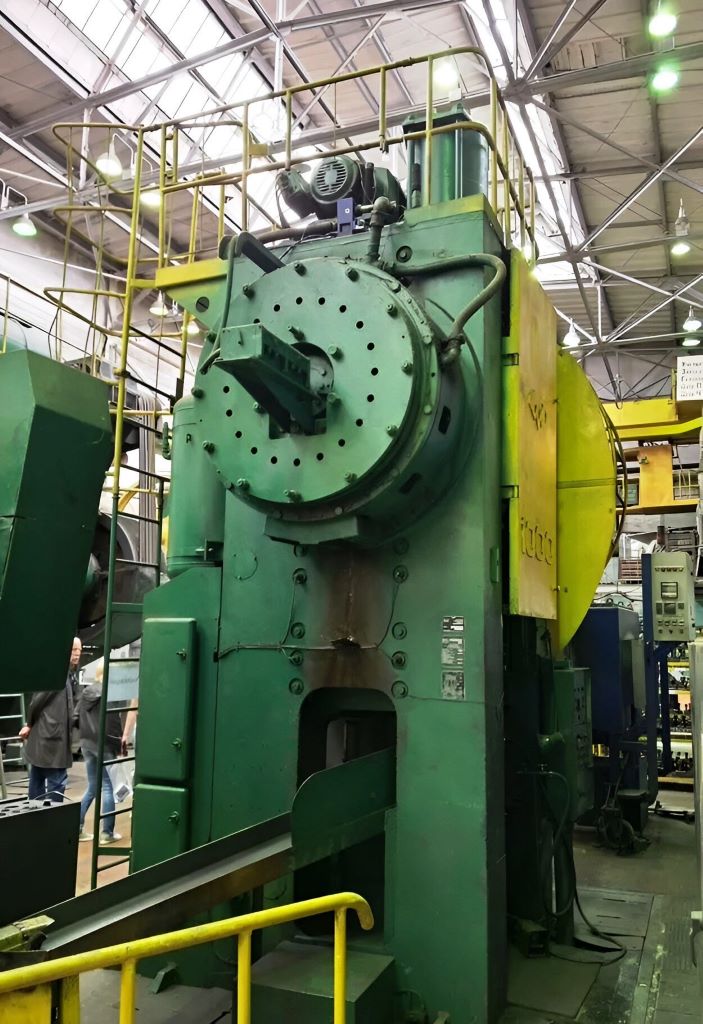

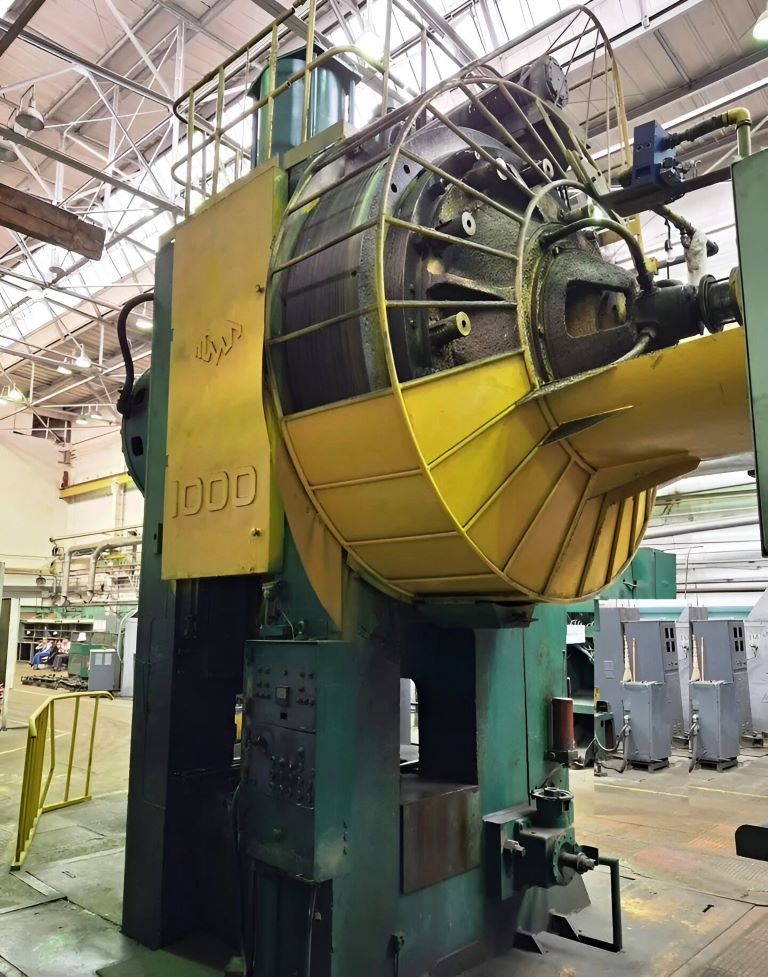

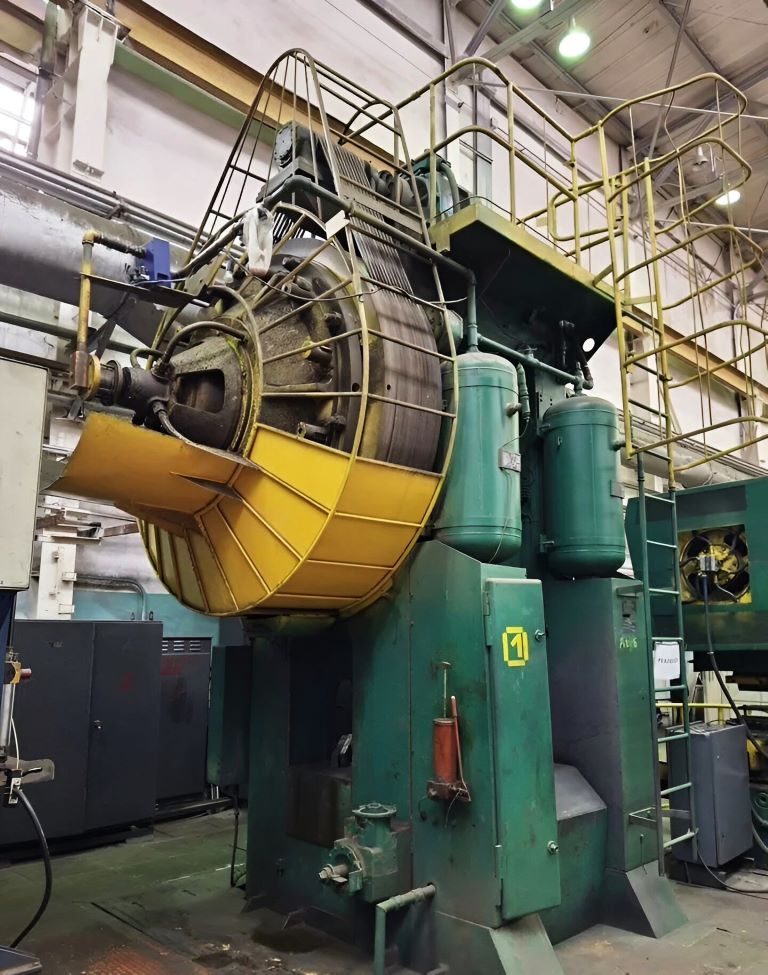

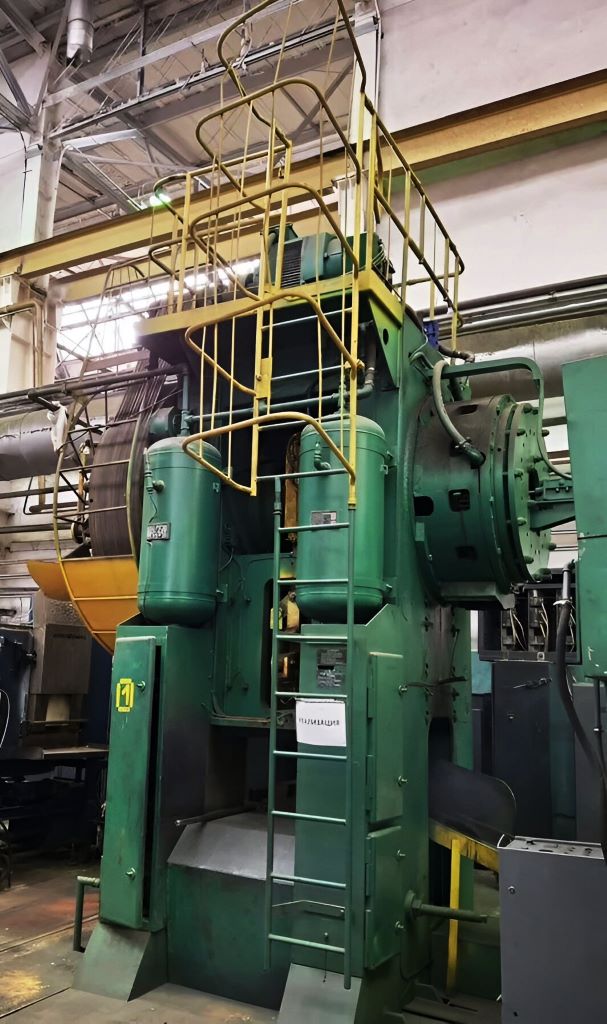

Pressa per stampaggio a caldo TMP Voronezh AKKB8040 - 1000 ton
Specifiche tecniche (EN) -
Pressa per stampaggio a caldo TMP Voronezh AKKB8040 - 1000 ton (ID: 76316)
| Type | Hot forging press |
| Manufacturer | TMP Voronezh |
| Model | AKKB8040 |
| Year of manufacture | 1992 |
| Tonnage | 1000 tons |
| Slide stroke | 250 mm |
| Frequency of slide strokes | 90/1 min |
| Distance between table and punch plate of slider in case of upper table location | 580 mm |
| Adjustemnt of distance between table and slider | 20 mm |
| Upper ejector | |
| -Stroke | 40 mm |
| -Power | 31,5 kN |
| Bottom ejector | |
| -Stroke | 30 mm |
| -Power | 50 kN |
| Bed dimensions | 770 x 990 mm |
| Slide dimensions | 720 x 720 mm |
| Window size in the column | 1250 x 560 mm |
| Lower extractor | 5 |
| Upper extractor | 3,15 |
| Overall dimensions | 4430 x 3500 x 5145 mm |
| Total weight | 65700 kg |
