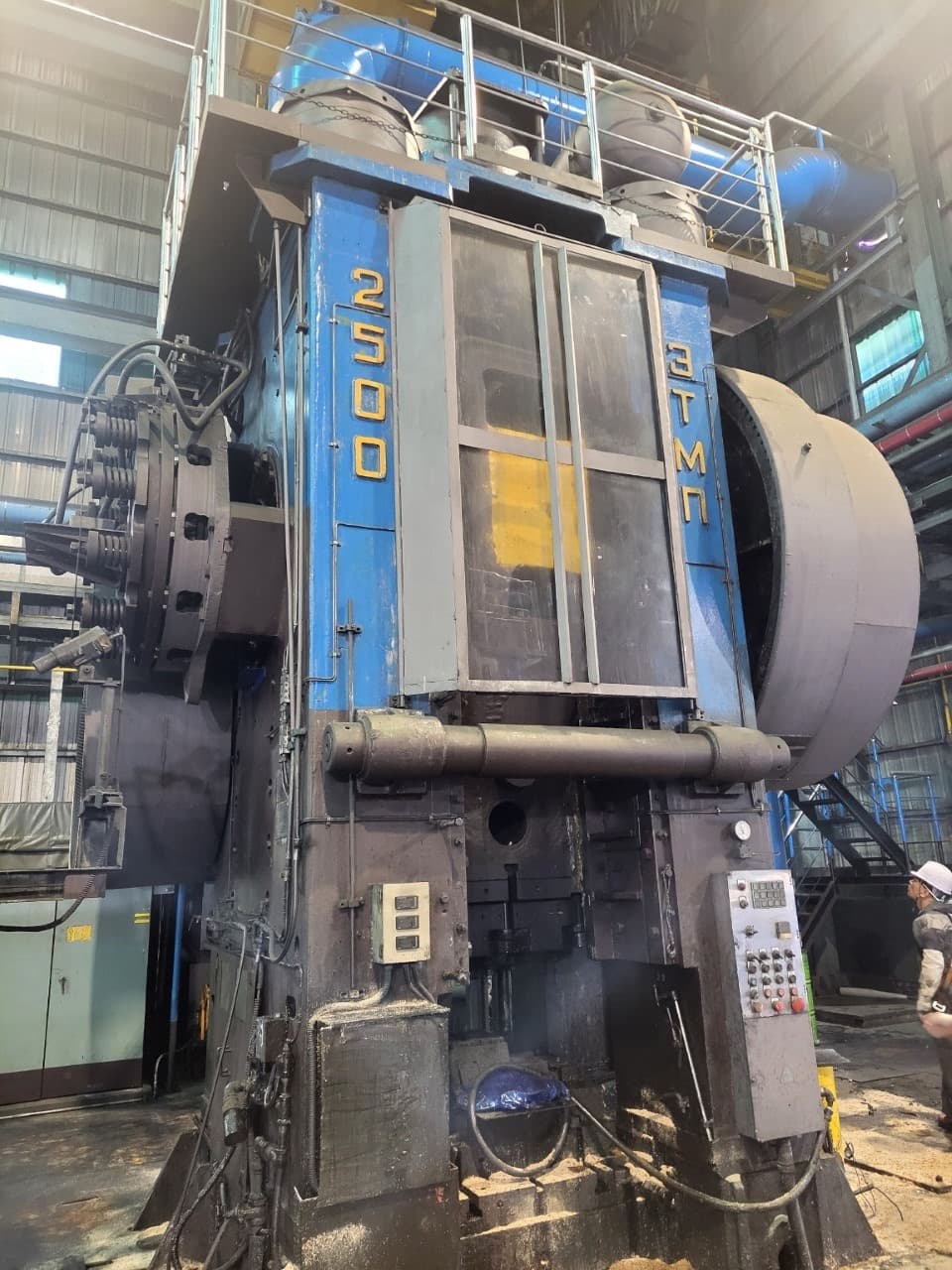

Pressa per forgiatura a caldo TMP Voronezh K8544 - 2500 ton
Specifiche tecniche -
TMP Voronezh K8544 (ID: 76406)
| Tipo | Pressa per forgiatura a caldo |
| Produttore | TMP Voronezh |
| Modello | K8544 |
| Nominal force | 25000 kN / 2500 ton |
| Stroke | 350 mm |
| SPM | 60 |
| Shut height | 890 mm |
| Connecting rod length | 1100 mm |
| Table size | 1400 x 1200 mm |
| Slide size | 1120 x 1070 mm |
| Side window dimensions | 890 x 720 mm |
| Distance between uprights | 1320 mm |
| Top ejector stroke | 50 mm |
| Top ejector force | 63 kN |
| Bottom ejector stroke | 50 mm |
| Bottom ejector force | 100 kN |
| Overall dimensions | 5380 x 4680 x 6400 mm |
| Weight | 198000 kg |
