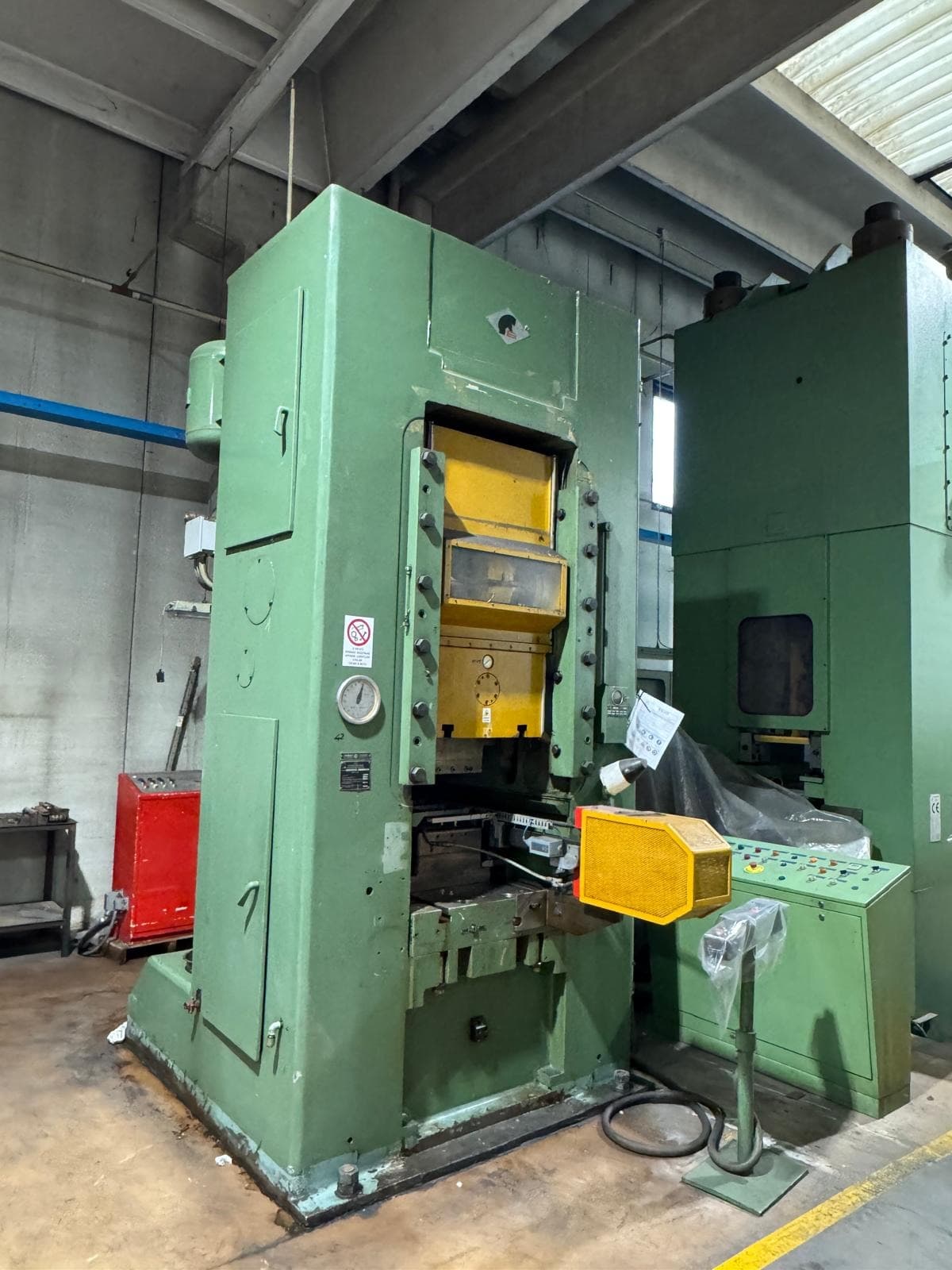

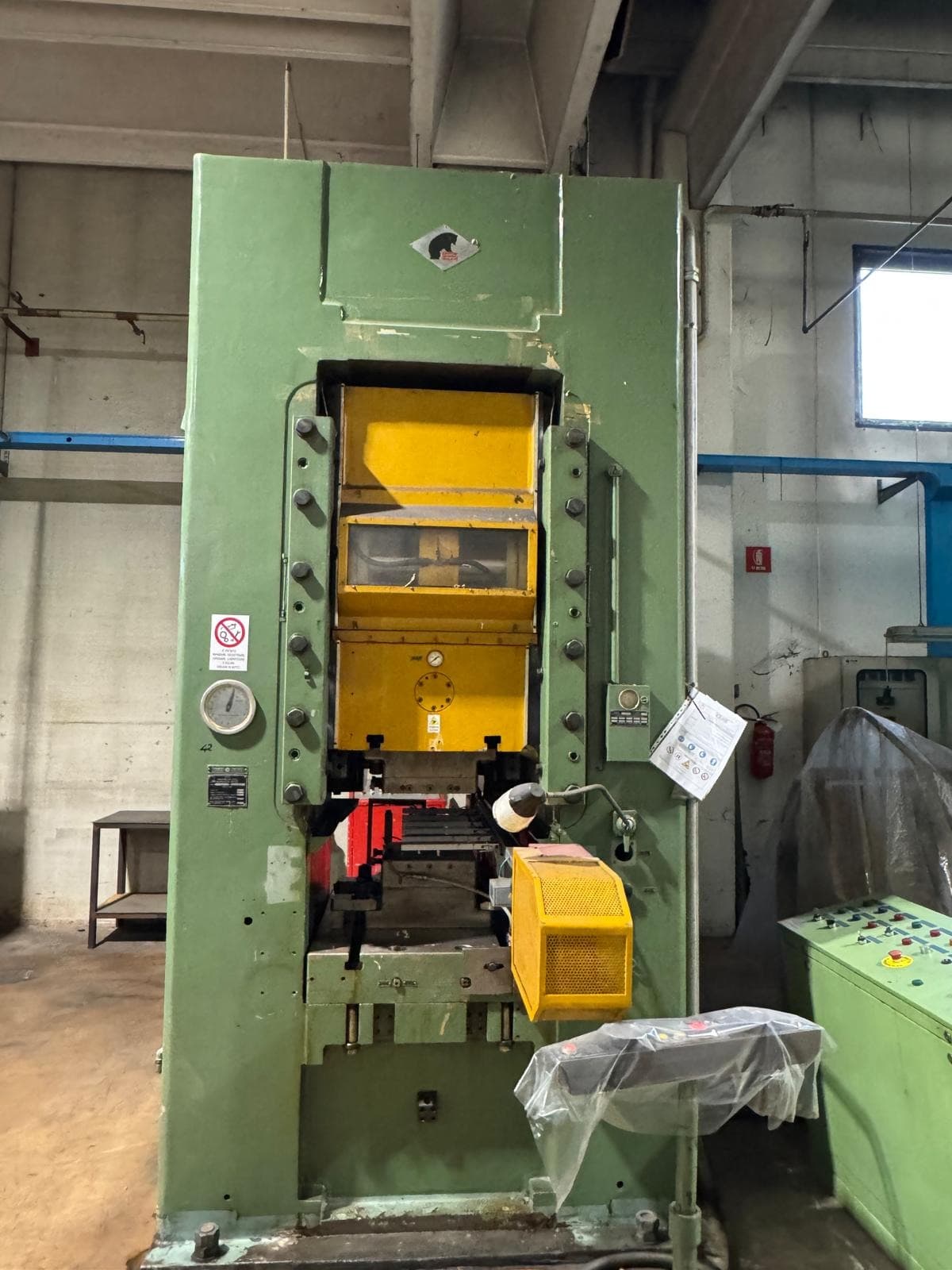

Pressa a ginocchiera Barnaul K8340 - 1000 ton
Specifiche tecniche (EN) - Pressa a ginocchiera Barnaul K8340 - 1000 ton (ID: S91138)
| Type | Knuckle joint press |

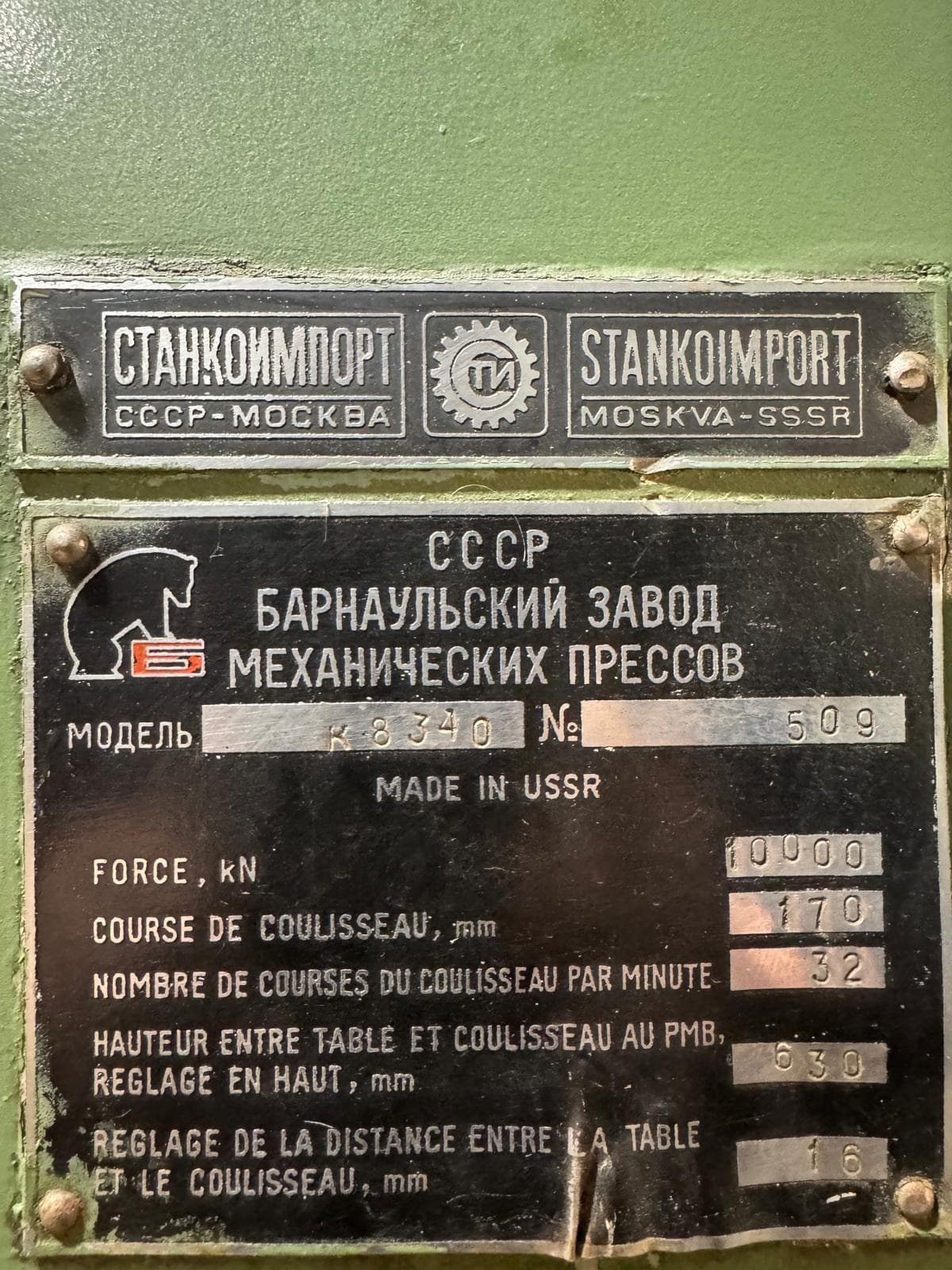

| Manufacturer | Barnaul |
| Model | K8340 |
| Nominal force | 1000 ton |
| Stroke | 170 mm |
| Table size | 1000 x 800 mm |
| SPM | 18/32 spm |
| Shut height | 630 mm |
| Adjustment range (table–slide) | 16 mm |
| Hole diameter in slide | 80 mm |
| Bolster thickness | 160 mm |
| Bottom ejector stroke | 100 mm |
| Bottom ejector force | 320 kN |
| Bottom ejector adjustment | 25 mm |
| Top ejector stroke | 15 mm |
| Top ejector force | 100 kN |
| Main motor power | 40 kW |
| Main motor speed | 930 rpm |
| Press height above floor | 3470 mm |
| Overall height | 3620 mm |
| Overall dimensions (L × W) | 2030 x 1950 mm |
| Drive | 40 kW |
| Weight | 25637 kg |
