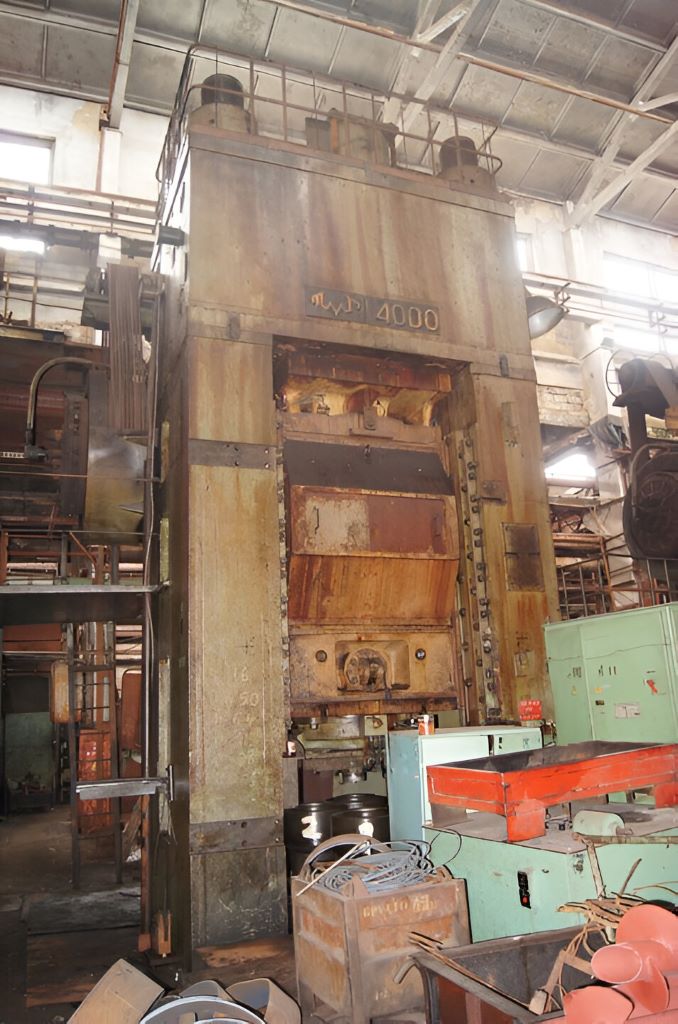

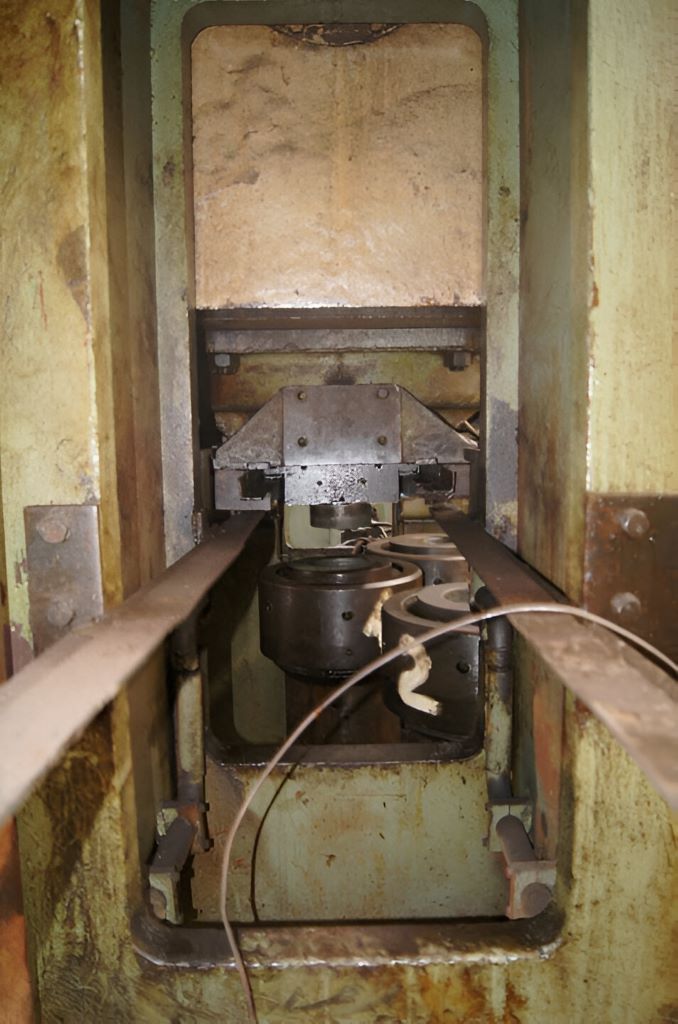

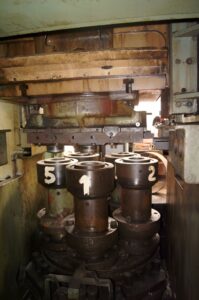

Pressa a ginocchiera TMP Voronezh K04.127.846 - 4000 ton
Specifiche tecniche (EN) -
Pressa a ginocchiera TMP Voronezh K04.127.846 - 4000 ton (ID: S90505)
| Type | Knuckle joint press |
| Manufacturer | TMP Voronezh |
| Model | K04.127.846 |
| Nominal force | 4000 tons |
| Slide stroke | 200 mm |
| Number of continuous slide strokes per minute | 16 |
| Distance between table and slide in its lower position at upper position of adjustment | 2350 mm |
| Distance adjustment between table and slide | 20 mm |
| Table | 1600 x 2040 mm |
| Slide | 1160 x 1080 mm |
| Lower ejector | |
| — Force at stroke of 30 mm | 100 tons |
| — Working stroke | 250 mm |
| Electric motor power of main drive | 132 kW |
| Press dimensions | 5835 x 5100 x 6975 mm |
| Press weight | 271000 kg |
