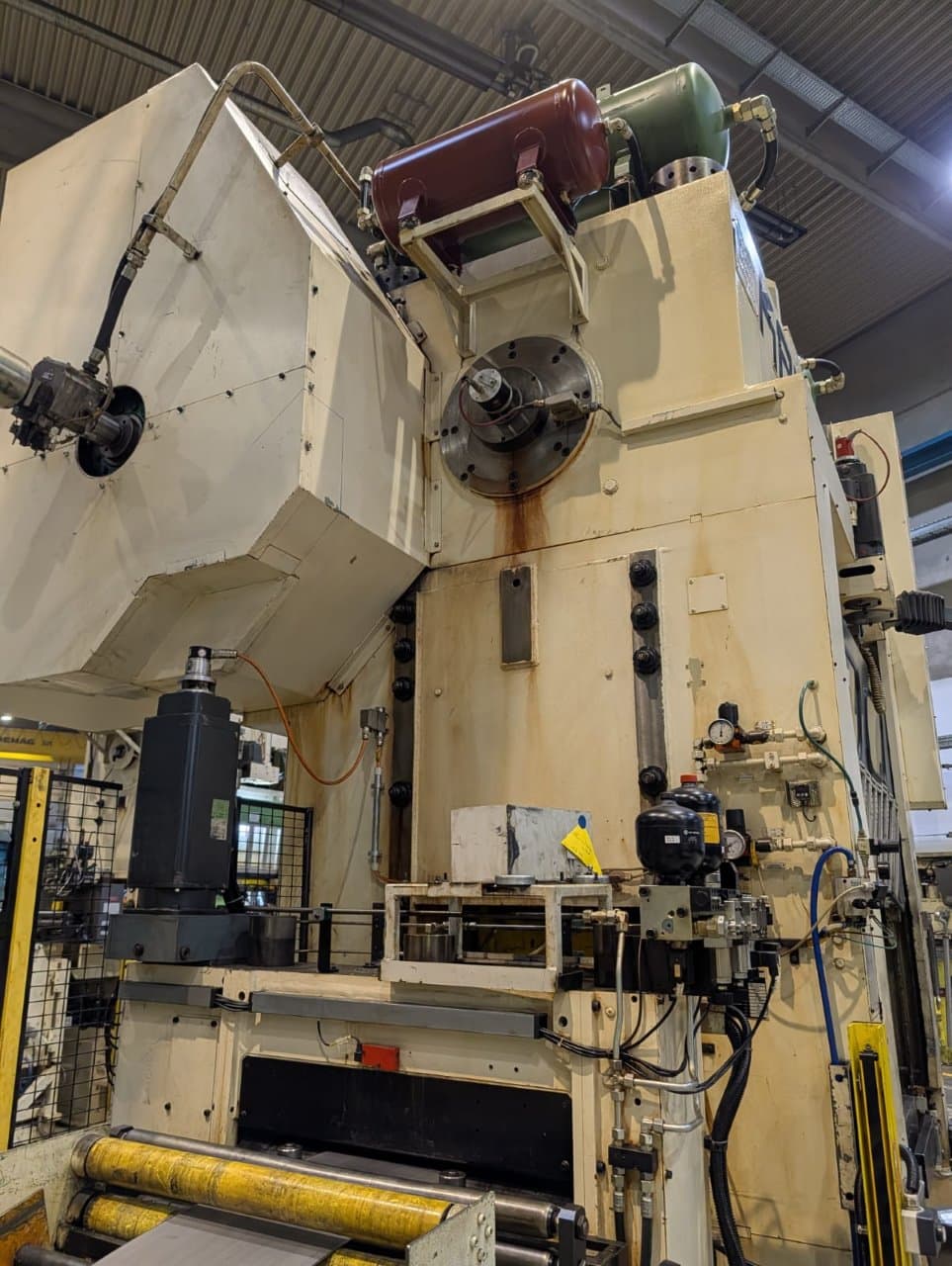

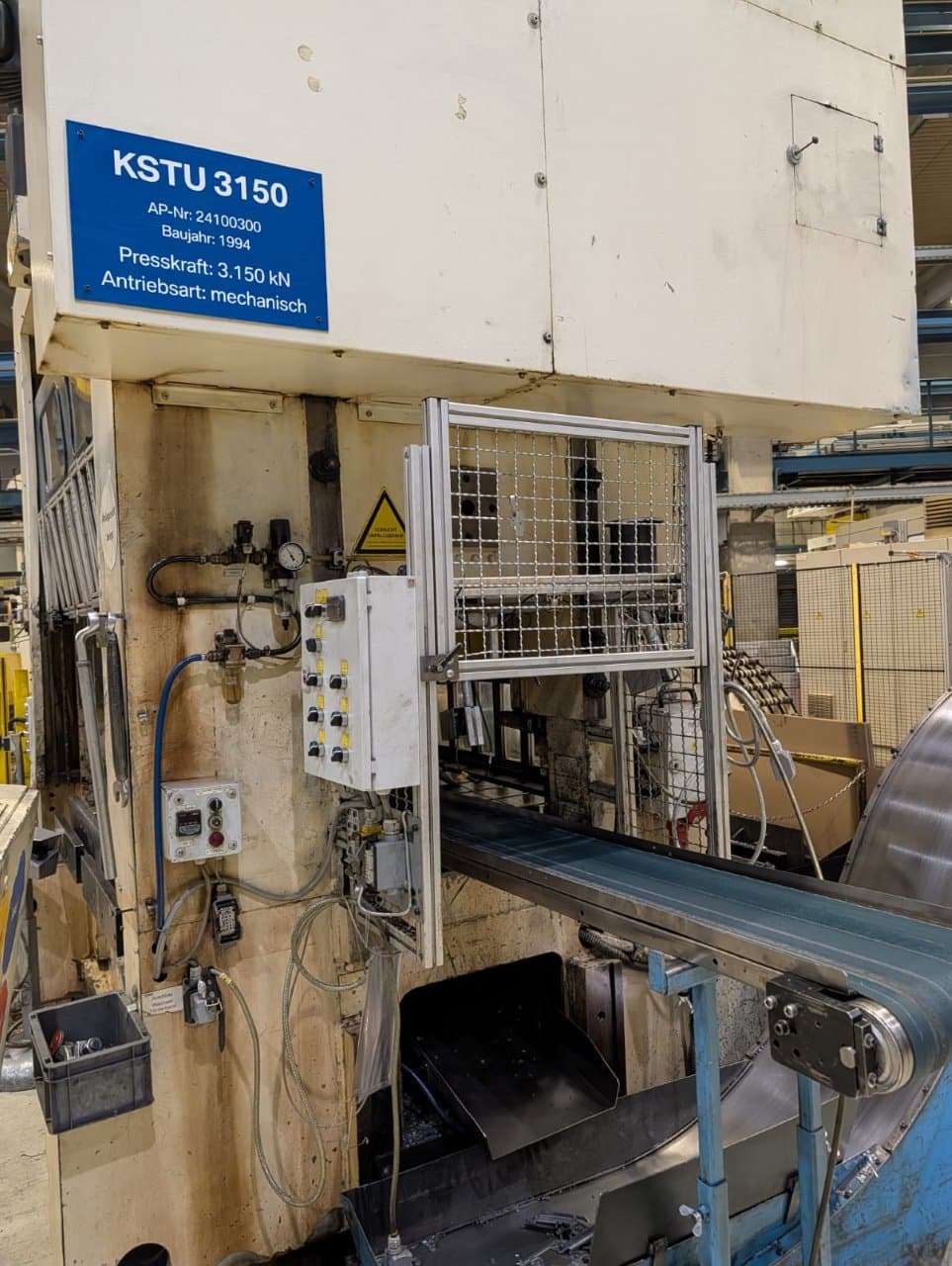

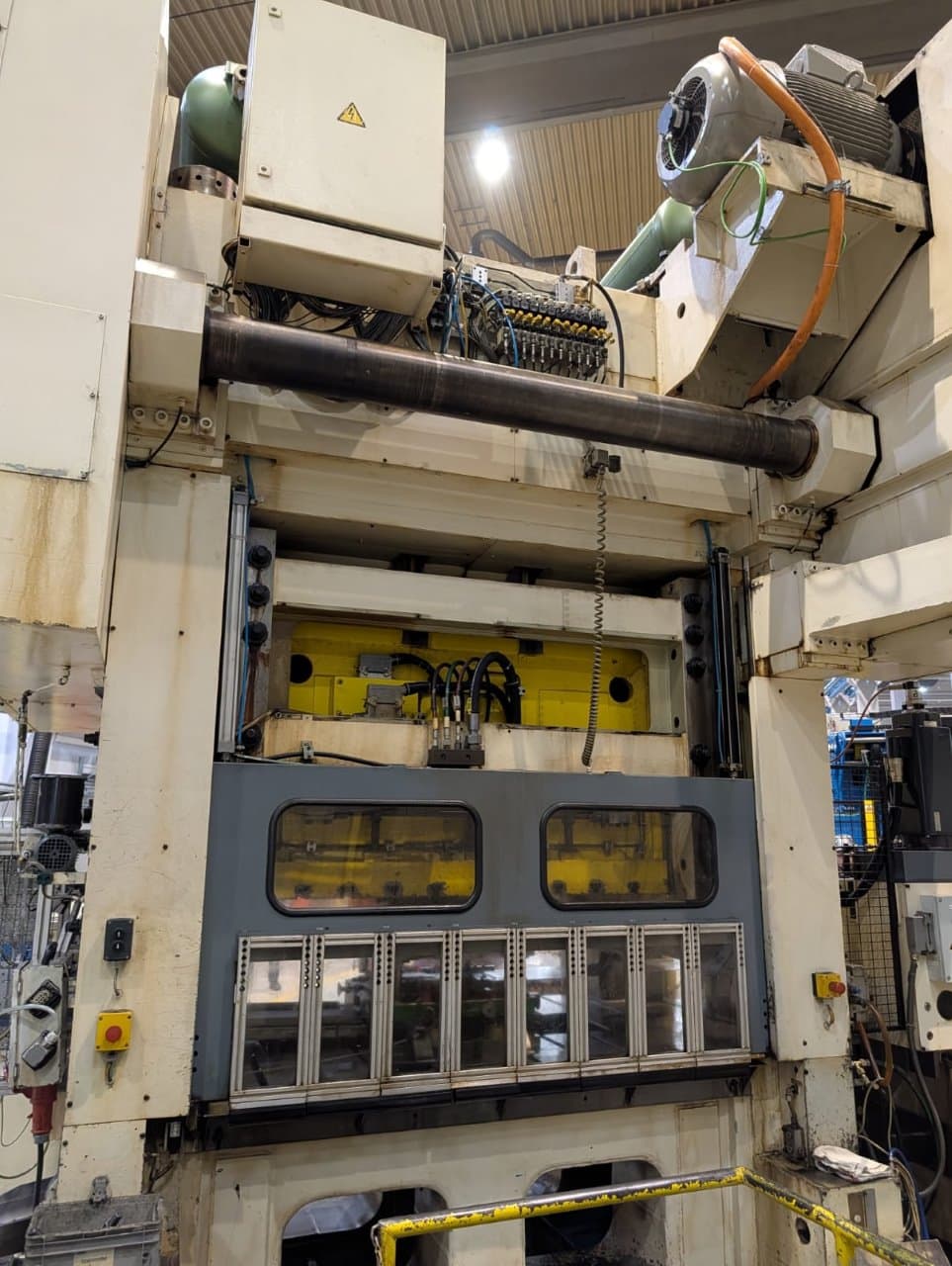

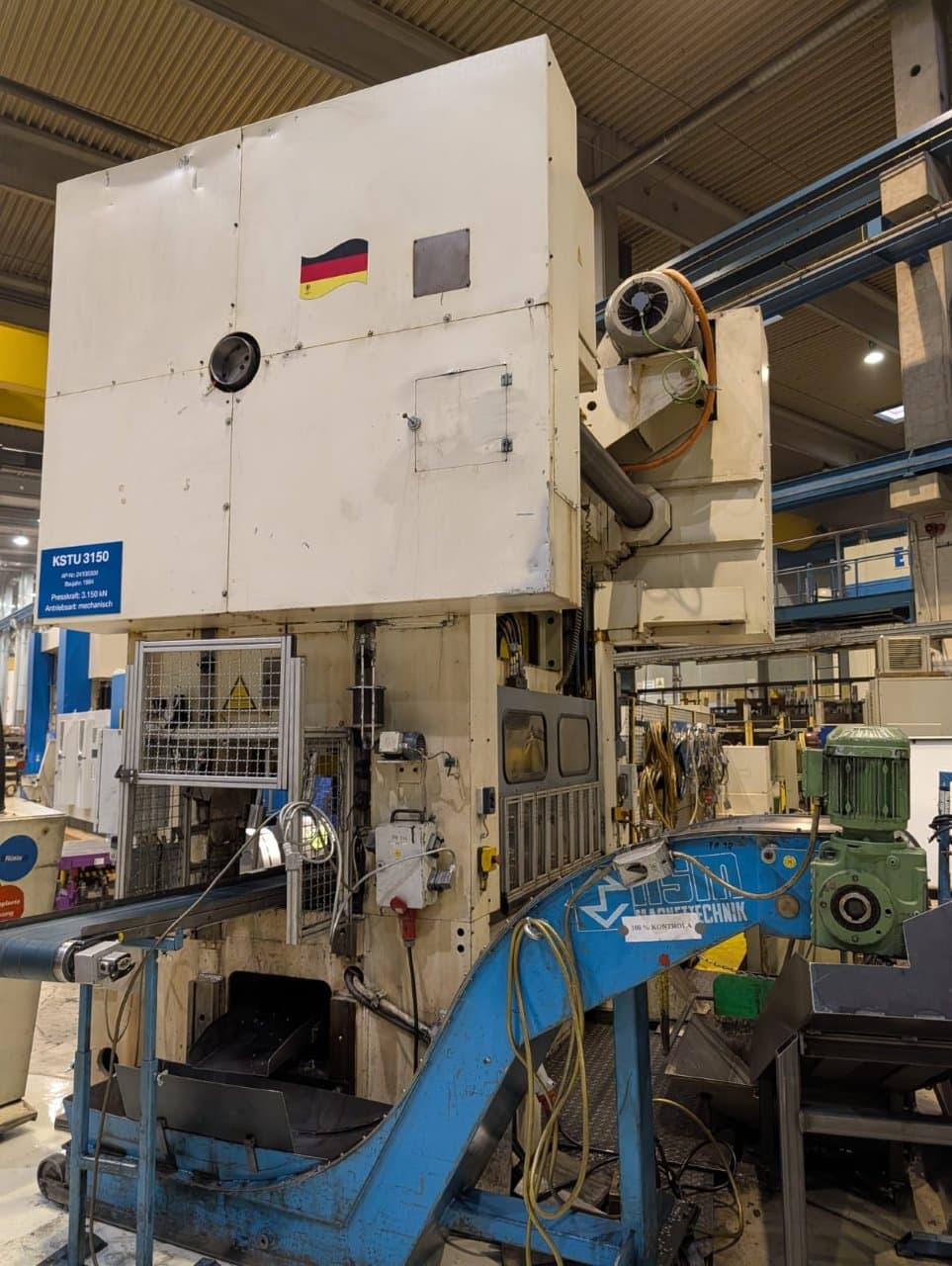

Pressa meccanica Kaiser KSTU 3150 - 315 ton
Specifiche tecniche (EN) -

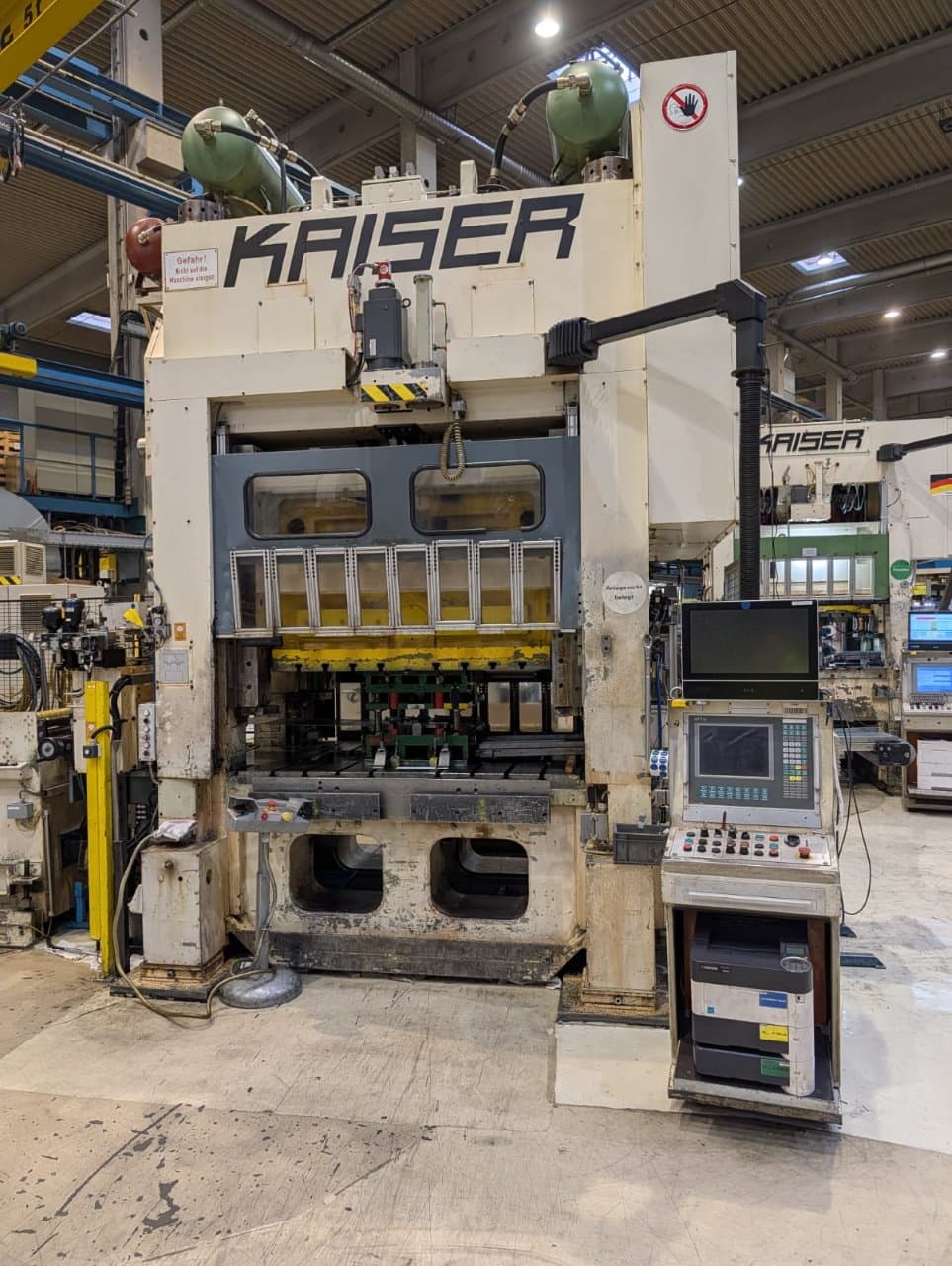

Pressa meccanica Kaiser KSTU 3150 - 315 ton (ID: 76460)
| Type | Mechanical press |
| Manufacturer | Kaiser |
| Model | KSTU 3150 |
| Press force | 315 ton |
| SPM | 20 — 120 |
| Stroke | 20 — 150 mm |
| Slide adjustment | 150 mm |

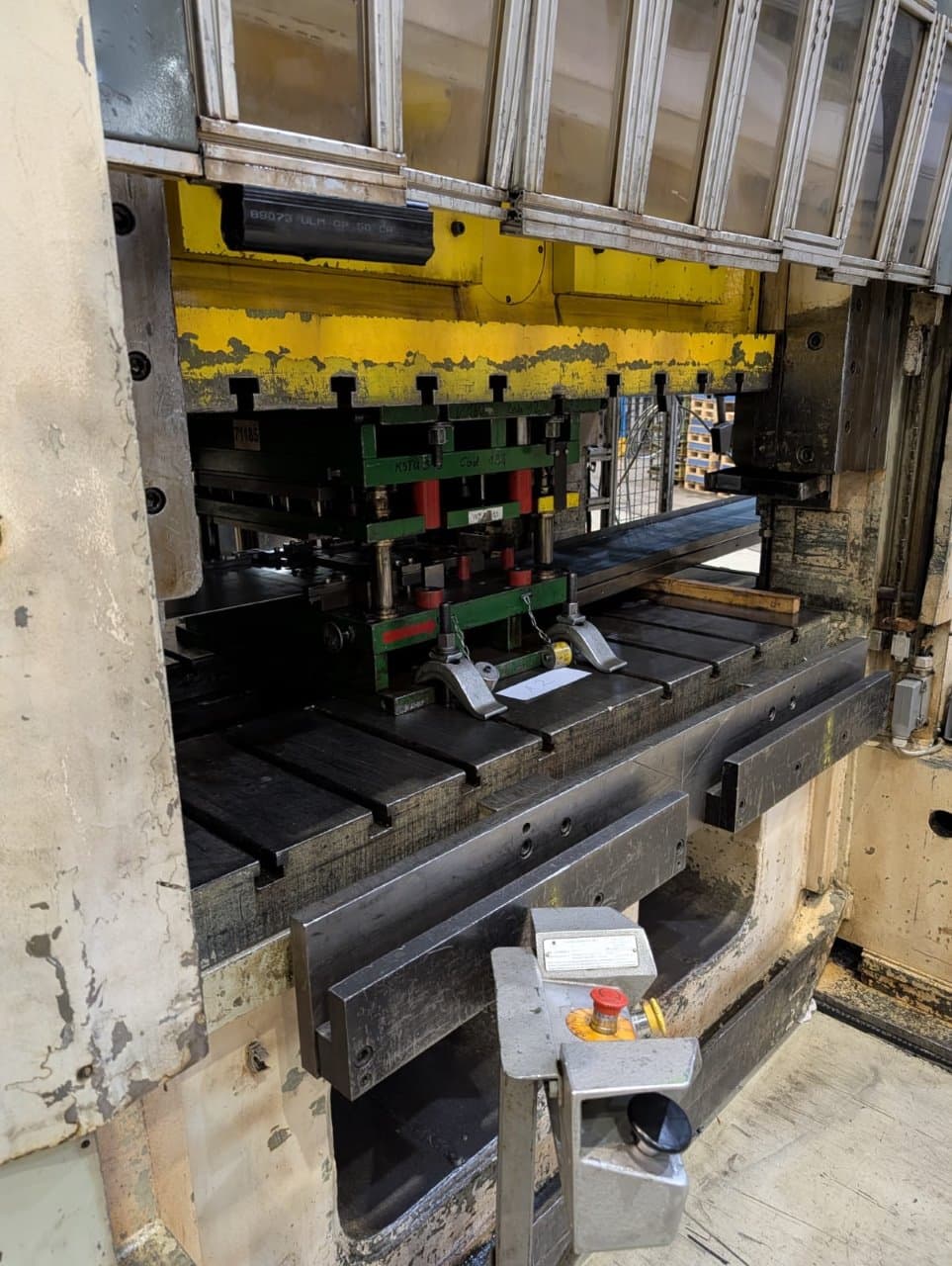

| Table size | 1780 x 1250 mm |
| Ram surface | 1500 x 1000 mm |
| Installation height | 565 mm |
| Max tool weight | 3000 kg |
| Strip width | 30 — 800 mm |
| Strip thickness | 0.5 — 3 mm |
| Max strip thickness | 4 mm |

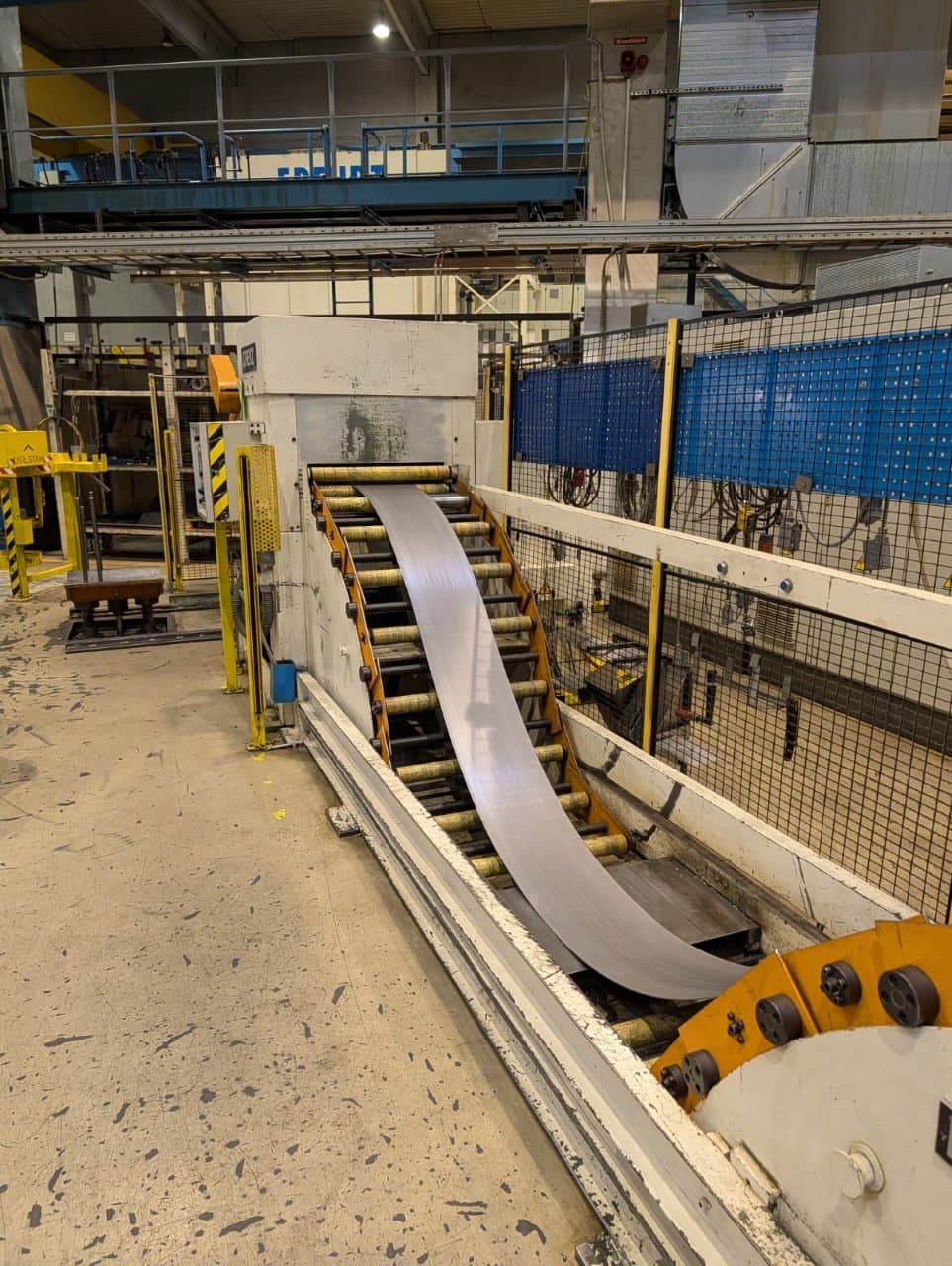

| Strip entry height | 160 — 260 mm |
| Strip speed | 4 — 30 m/min |

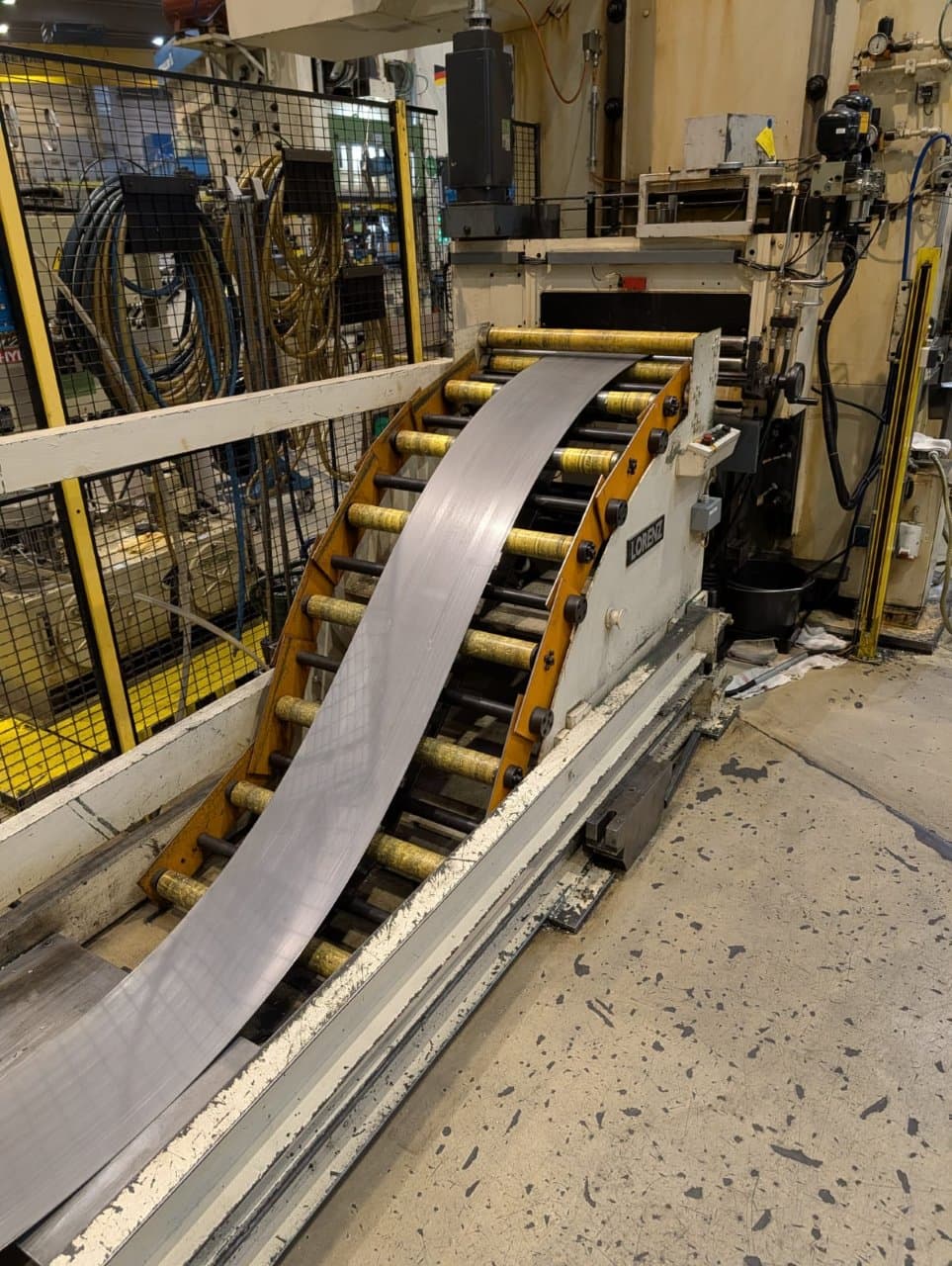

| Straightening rolls | 9 pcs |
| Feed accuracy | ± 0.1 mm |

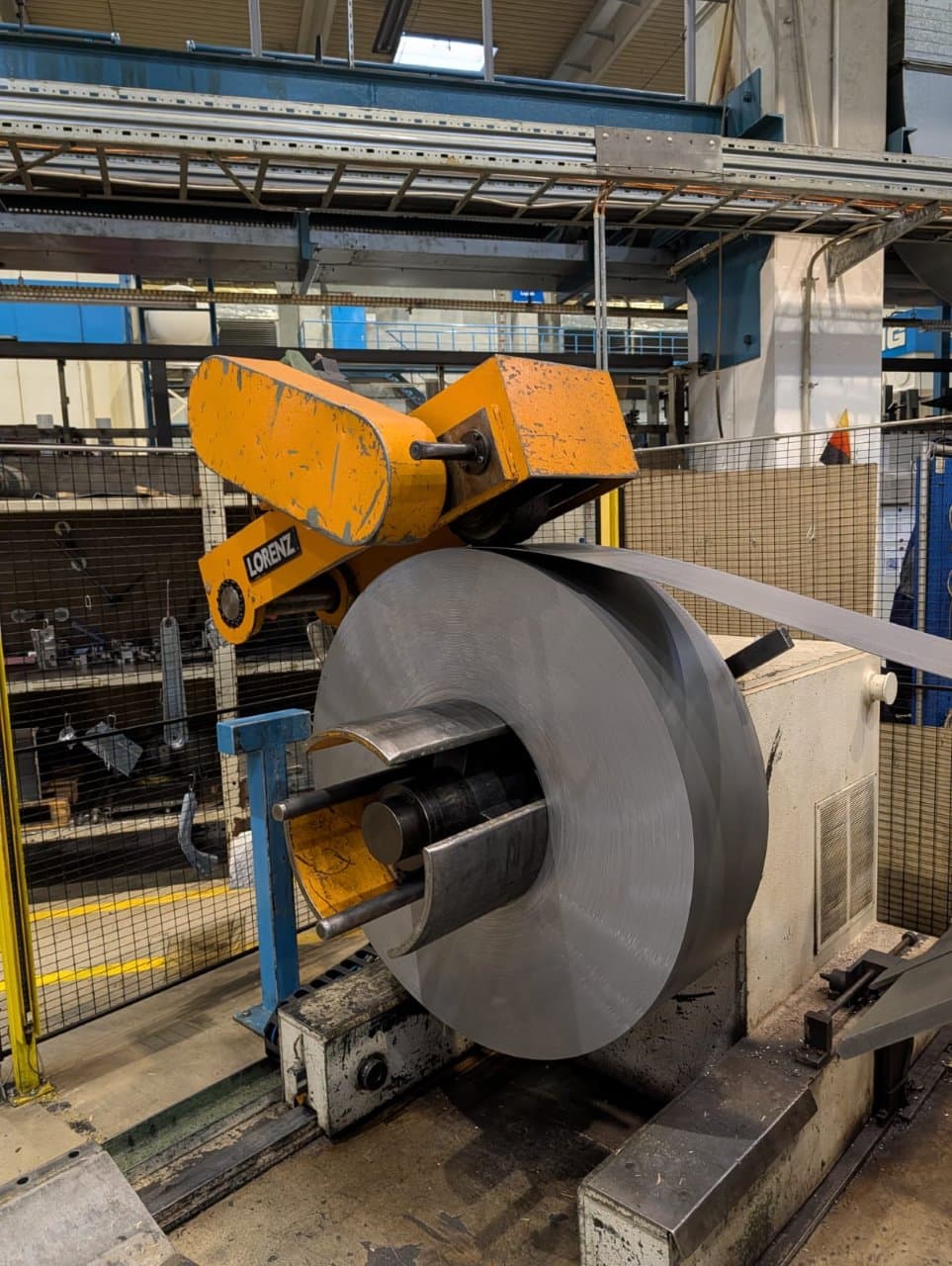

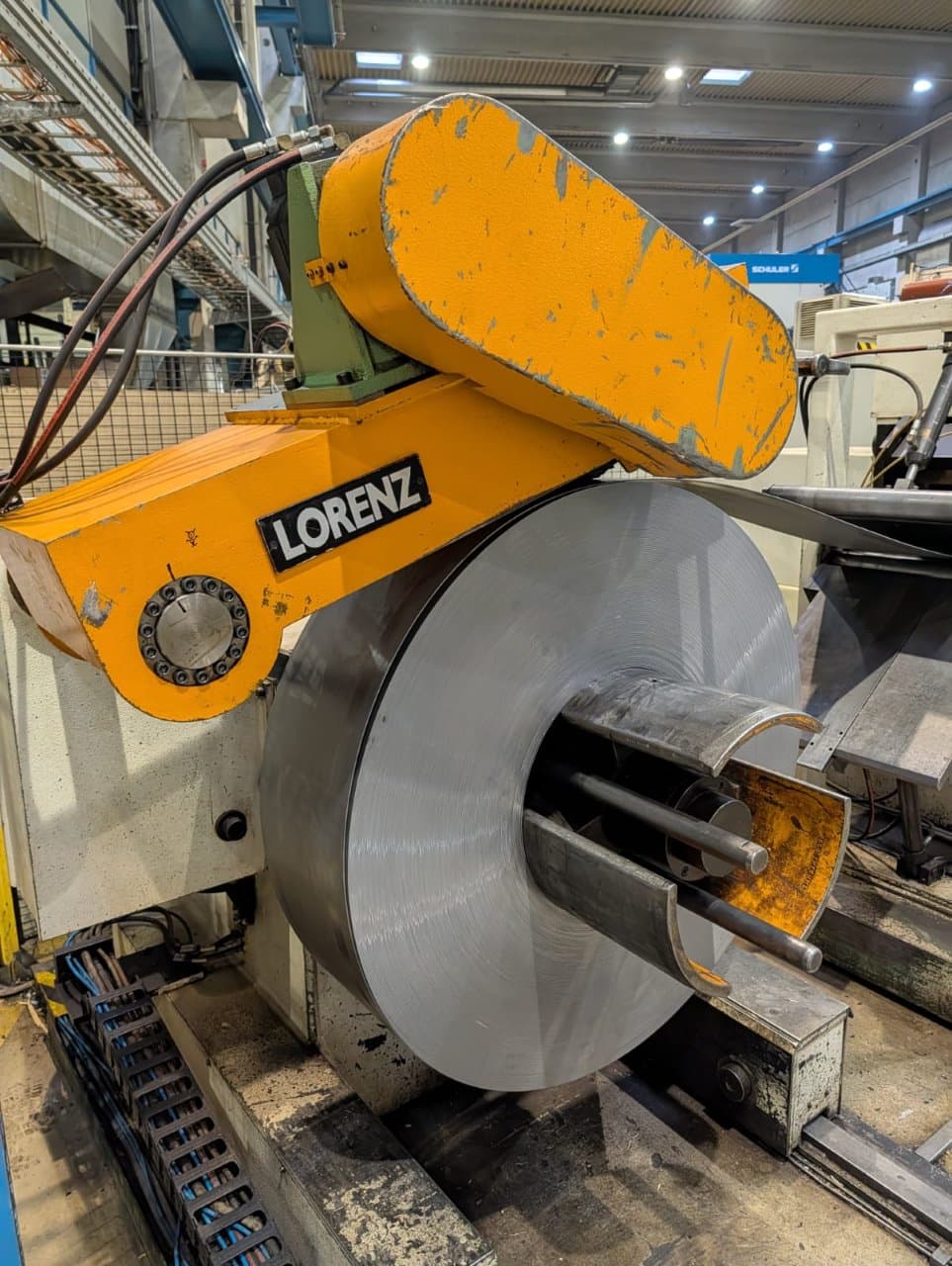

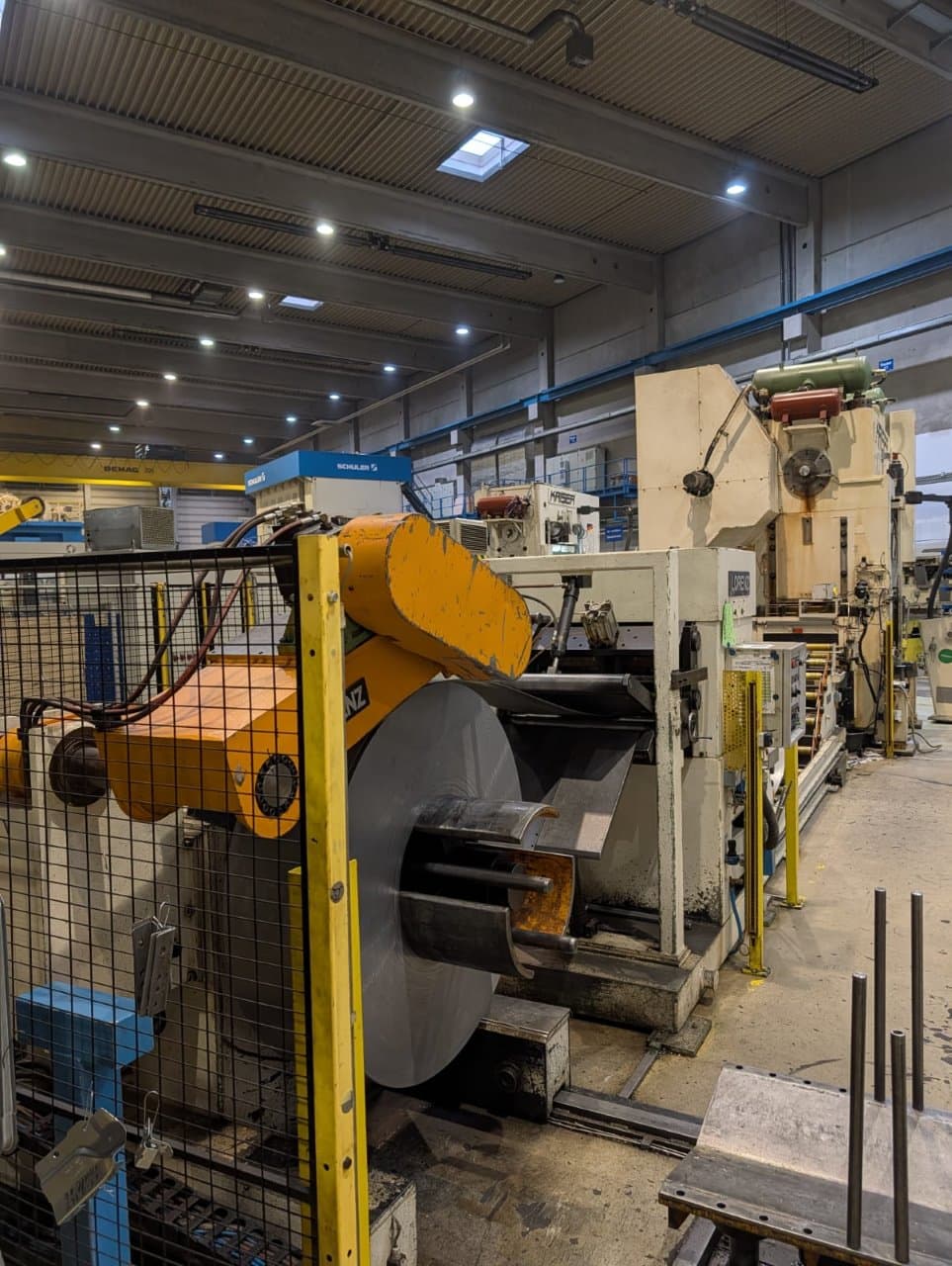

| Coil inner diameter | 508 mm |
| Coil outer diameter | 1000 — 1500 mm |
| Power supply | 3 x 400 V |
| Air pressure | 5 bar |
