Pressa per stampaggio Schuler GMO 2-315-2000-160 - 315 ton
Specifiche tecniche (EN) -

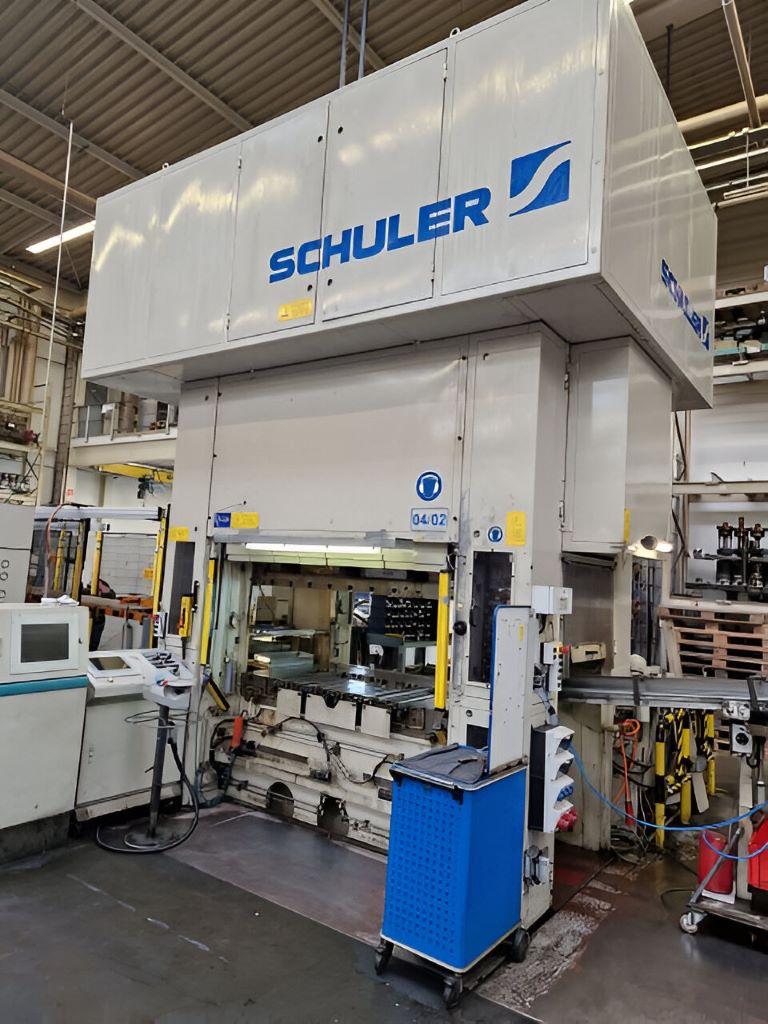

Pressa per stampaggio Schuler GMO 2-315-2000-160 - 315 ton (ID: 76354)
| Type | Stamping press |
| Manufacturer | Schuler |
| Model | GMO 2-315-2000-160 |
| Year of manufacture | 2003 |
| Press Design | |
| Drive system | knuckle-joint |
| Frame design | H-frame, monoblock |
| Openings in uprights | yes |
| Number of suspensions | 2 |
| Feedstock transport direction | left to right |

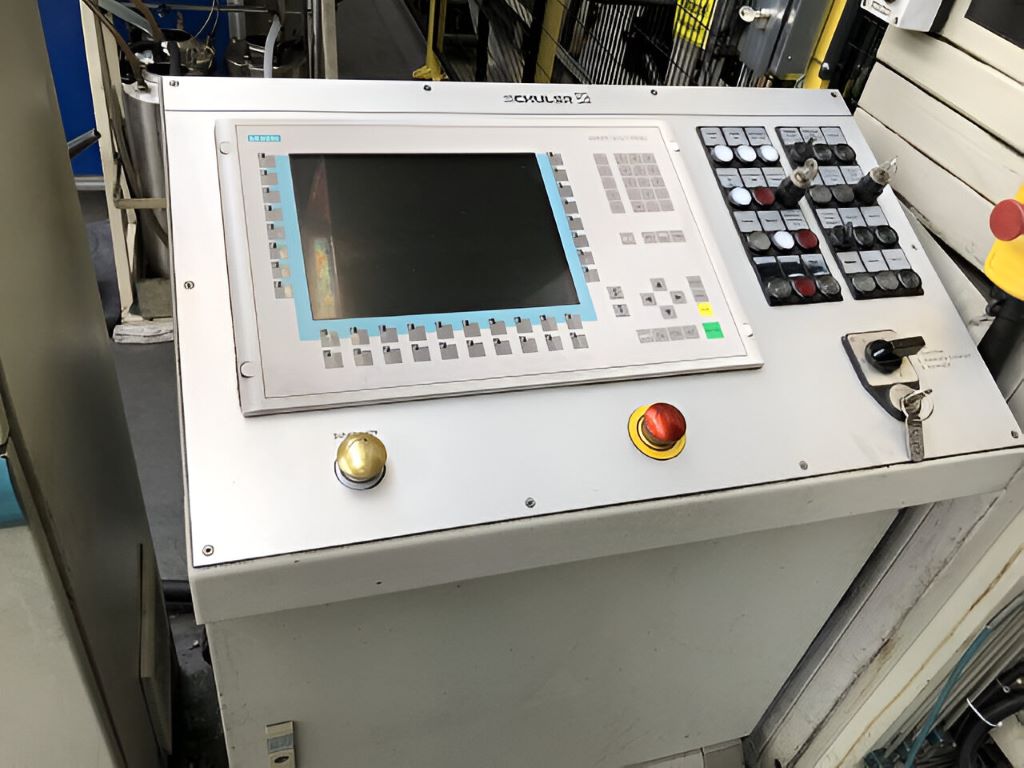

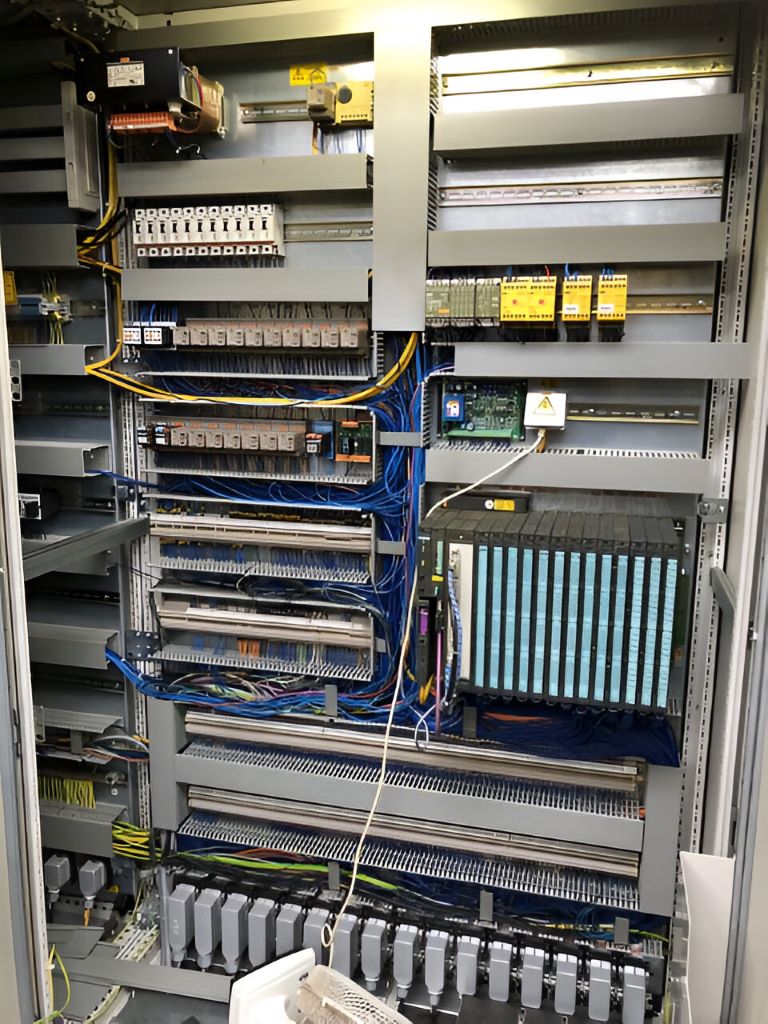

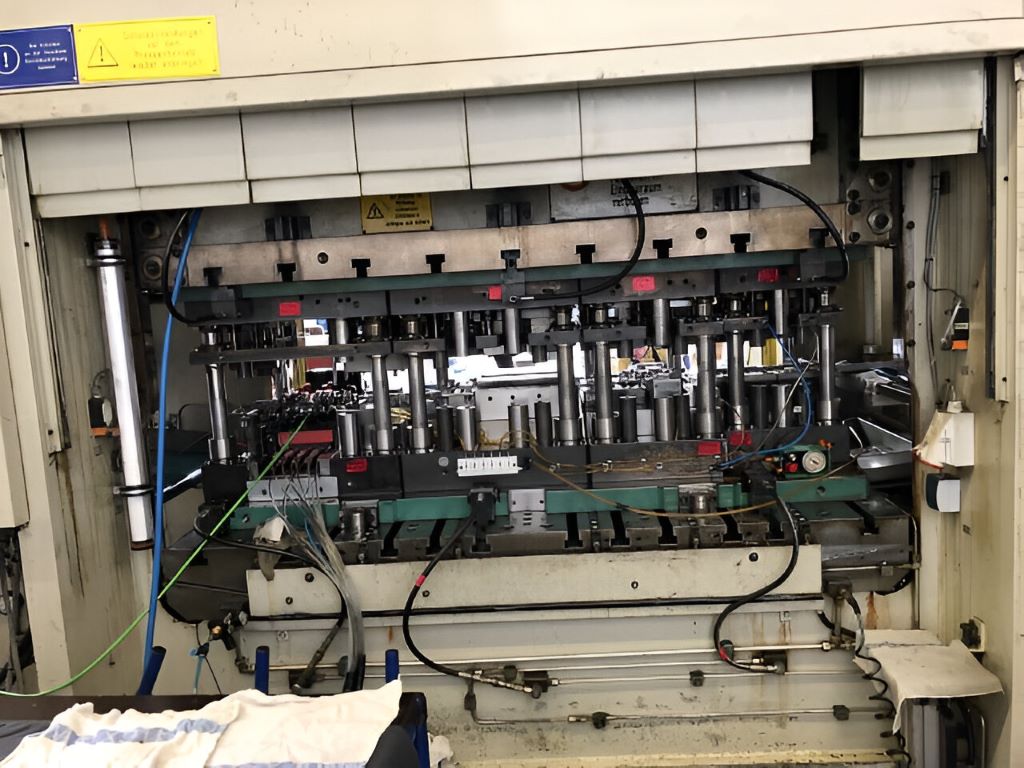

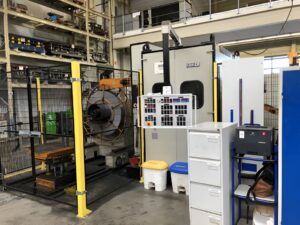

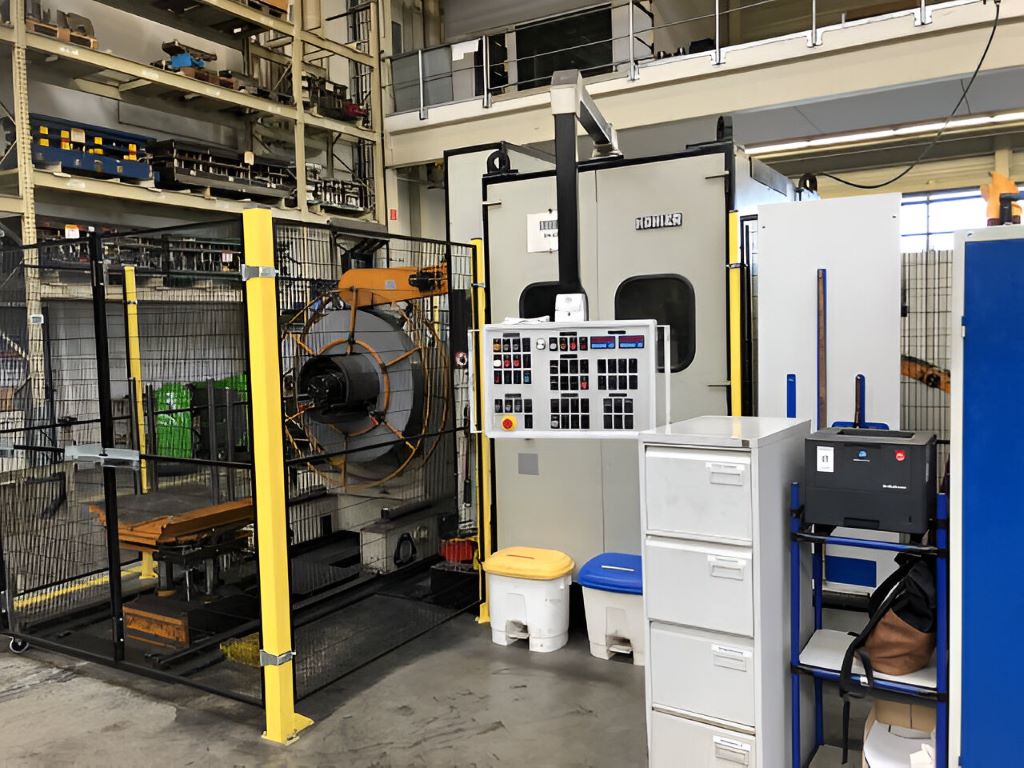

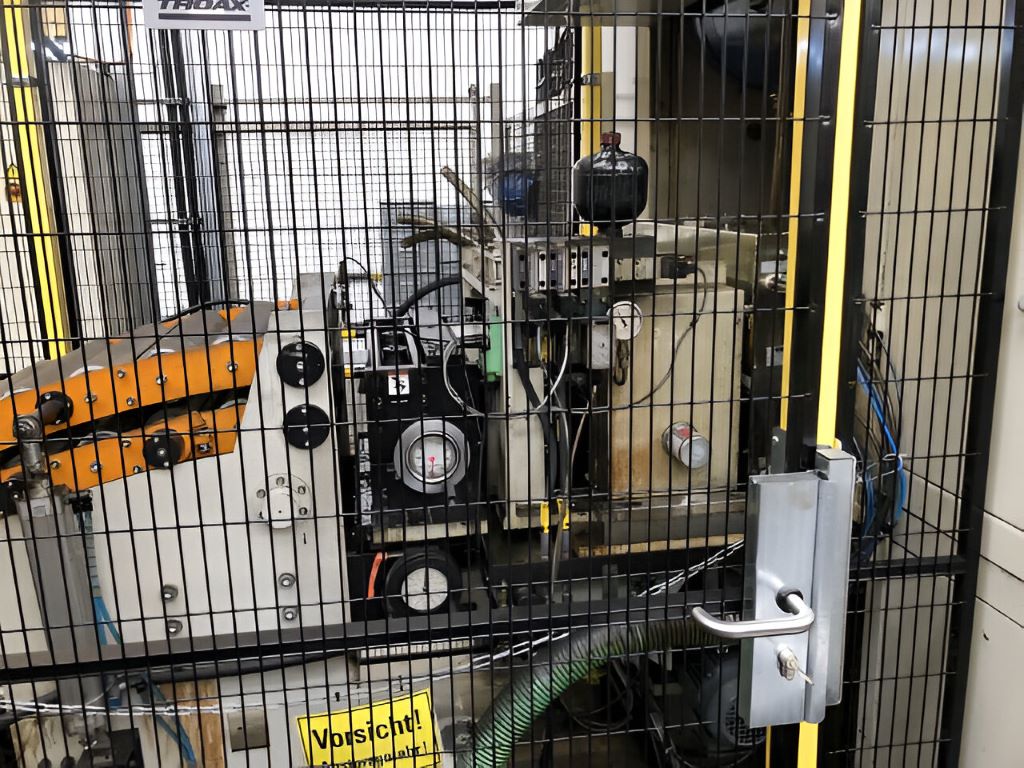

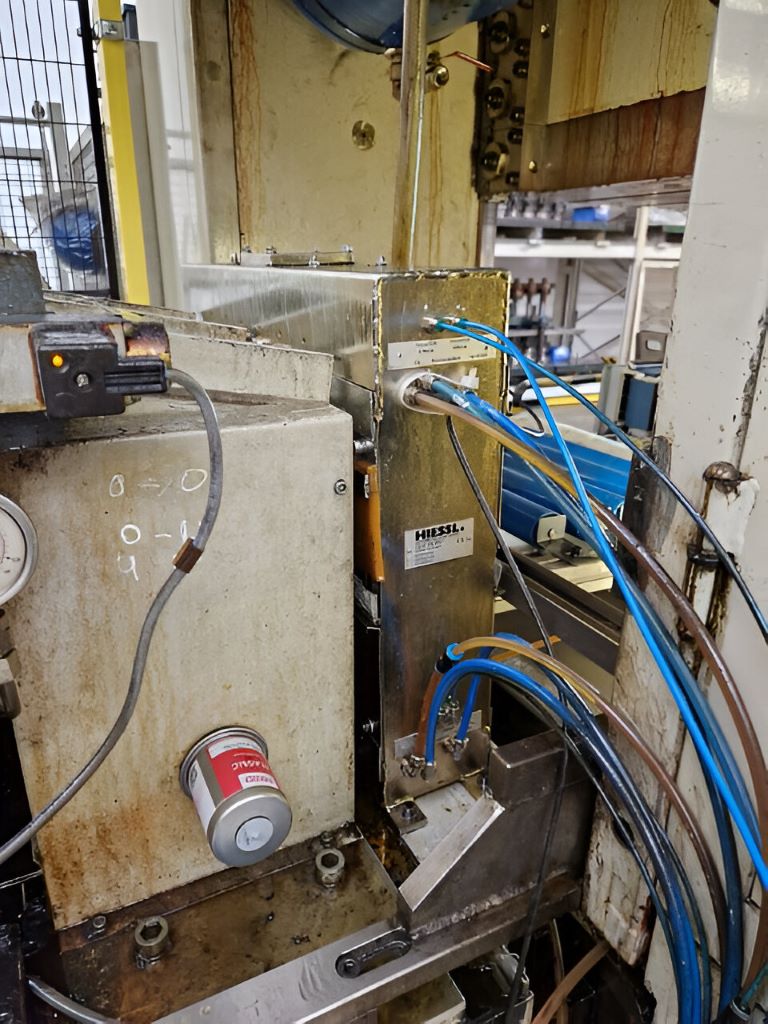

| Controls | SIEMENS S7 |
| Press forces | |
| Total force (nominal) | 315 ton |
| Nominal work capacity | 38 kNm |
| Press Table | |
| Table surface (left-right) | 2000 mm |
| Table surface (front-back) | 1200 mm |
| Thickness of bolster plate | 200 mm |
| Slide | |
| Slide force | 315 ton |
| Table surface (left-right) | 1995 mm |
| Table surface (front-back) | 1100 mm |
| Stroke | 160 mm |
| Stroke rate (max.) | 80 /min |
| Slide (mechan. Press) | |
| Slide adjustment | 140 mm |
| Stroke rate (min.) | 20 /min |
| Stroke rate (max.) | 80 /min |
| Main drive power | 90 kW |
| Tool Assembly Dimensions | |
| Shut height (stroke down, adjustment up), BDC | 555 mm |
| Distance between columns (H-frame) | 2060 mm |
| Passline opening (free passage in side columns) | 1060 mm |
| Overall Specifications (coil lines) | |
| Sheet width max. | 400 mm |
| Sheet thickness max. | 5 mm |
| Coil Chair | |
| Coil weight max. | 4 ton |
| Decoiler | |
| Design | single reel, traversable |
| Sheet width max. | 400 mm |
| Sheet width (min) | 30 mm |
| Coil weight max. | 4 ton |
| Max. diameter of coil | 1500 mm |
| Mandrel expansion range from | 460 mm |
| Mandrel expansion range up to | 530 mm |
| Movement | 1500 mm |
| Leveller Unit | |
| Sheet width max. | 400 mm |
| Sheet width (min) | 50 mm |
| Material cross section max. (450 N/mm2) | 1000 mm² |
| Number of leveller rolls | 9 |
| Diameter of leveller rolls | 50 mm |
| Number of infeed-/outfeed rolls | 150 |
| Feed velocity min. | 5 m/min |
| Feed velocity max. | 50 m/min |
| Strip-Feeder | |
| Feeder type | roll feeder |
| Sheet width max. | 400 mm |
| Sheet thickness max. | 5 mm |
| Electrical specifications | |
| Mains voltage | 400 V |
| Mains frequency | 50 Hz |
| Dimensions / weights | |
| Total weight approx. | 45000 kg |
| Attachments (presses) | |
| Decoiler | yes |
| Leveller unit | yes |
| Strip feeder | yes |
