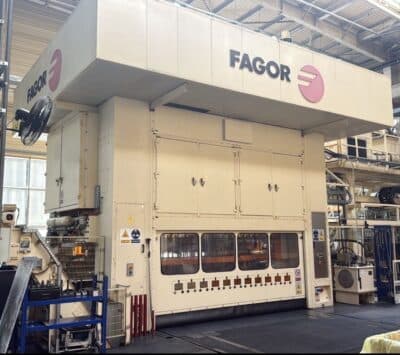

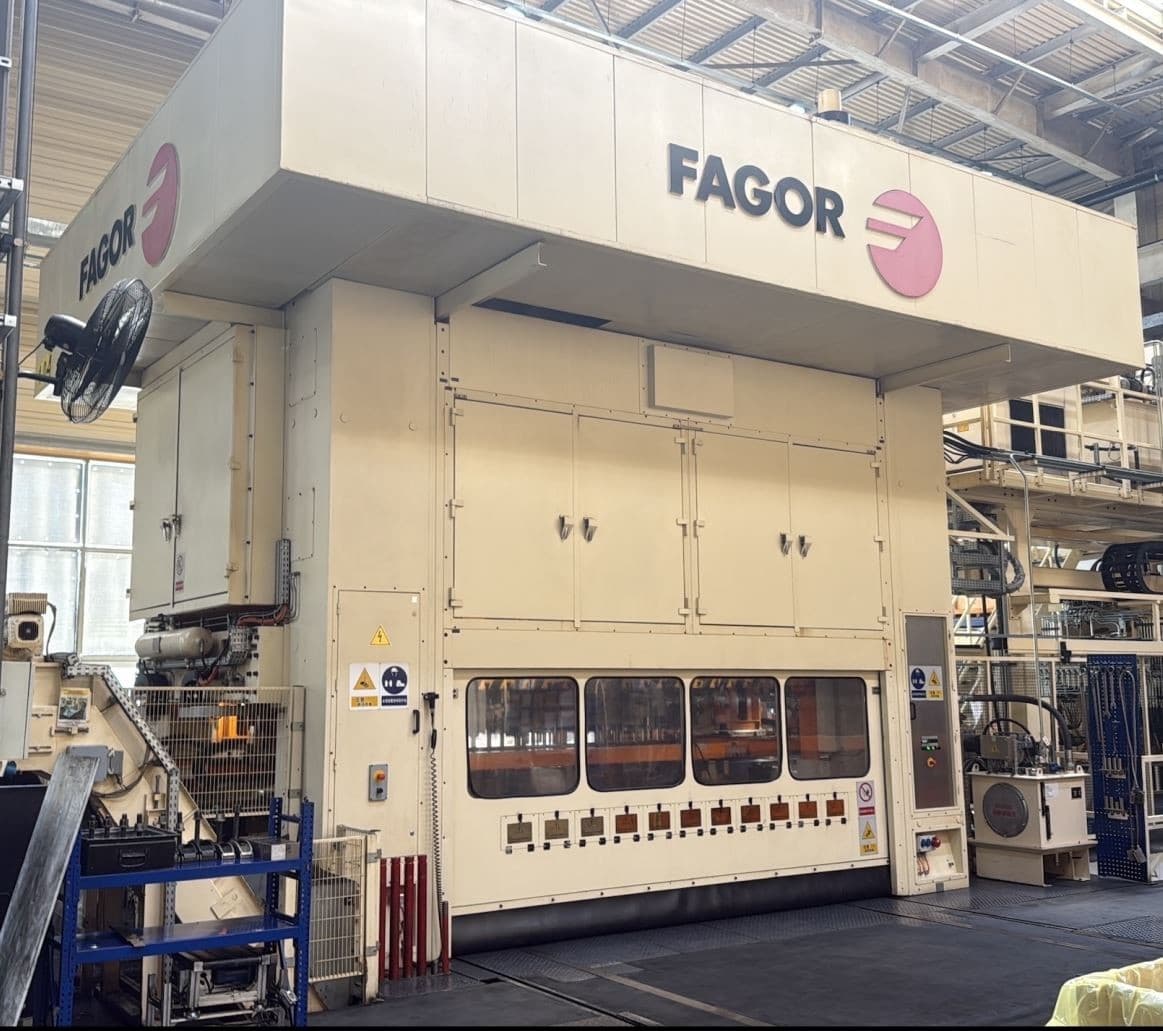

Pressa per stampaggio lamiera Fagor TSE2-1000-4000-1600 - 1000 ton
Specifiche tecniche (EN) -
Pressa per stampaggio lamiera Fagor TSE2-1000-4000-1600 - 1000 ton (ID: 76453)
| Type | Sheet stamping press |
| Manufacturer | Fagor |
| Model | TSE2-1000-4000-1600 |
| Capacity | 1000 tons |
| Controls | PLC SIEMENS S7-1500F |
| SPM | 8-50 |
| Stroke | 400 mm |
| Clamping surface (left-right) | 4000 mm |
| Clamping surface (front-back) | 1600 mm |
| Height above floor level | 600 mm |
| Autom. tool clamping device | Yes |
| Ram adjustment | 300 mm |
| Ram adjustment | 100 mm |

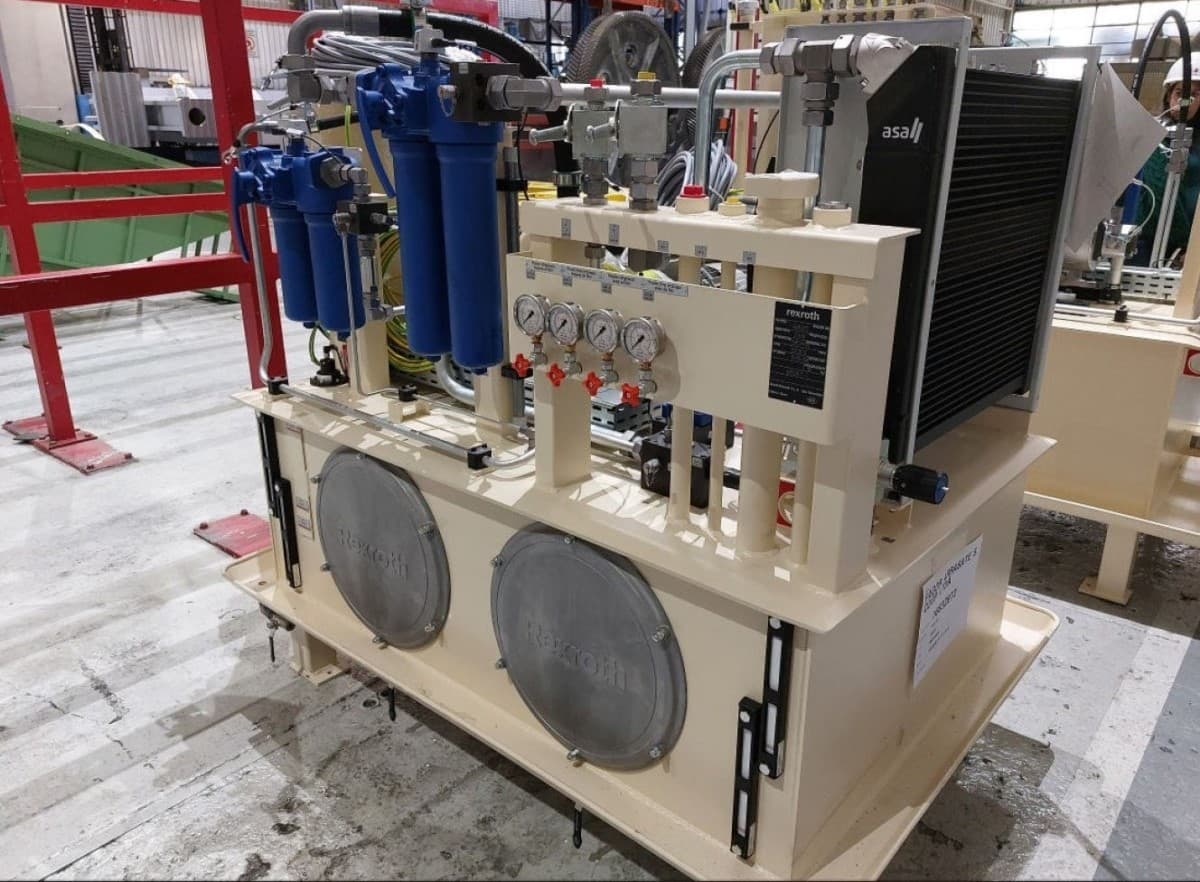

| Hydraulic overload protection | Yes |
| Tool assembly dimensions | |
| Shut height (stroke down, adjustment up) | 900 mm |
| Shut height (stroke down, adjustment up) | 766 mm |
| Distance between columns (H-frame) | 4250 mm |
| Free passage between side columns (width) | 1800 mm |
| Tool weight max. | 20 ton |

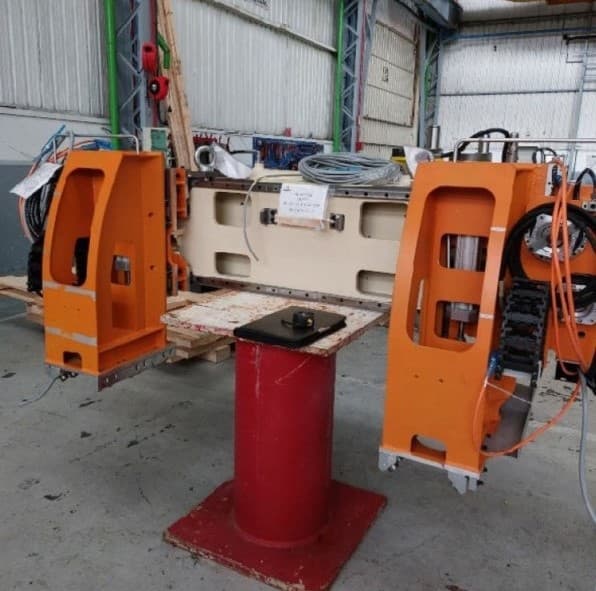

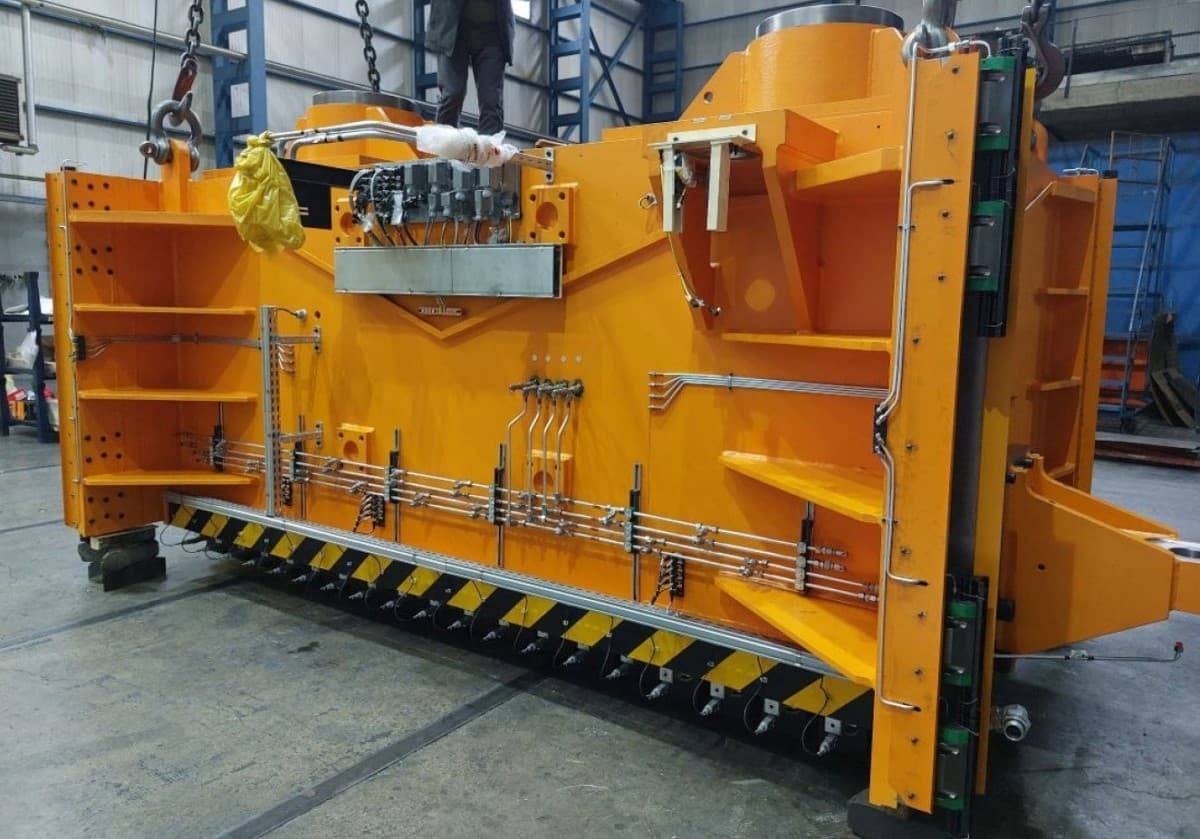

| Transfer system | |

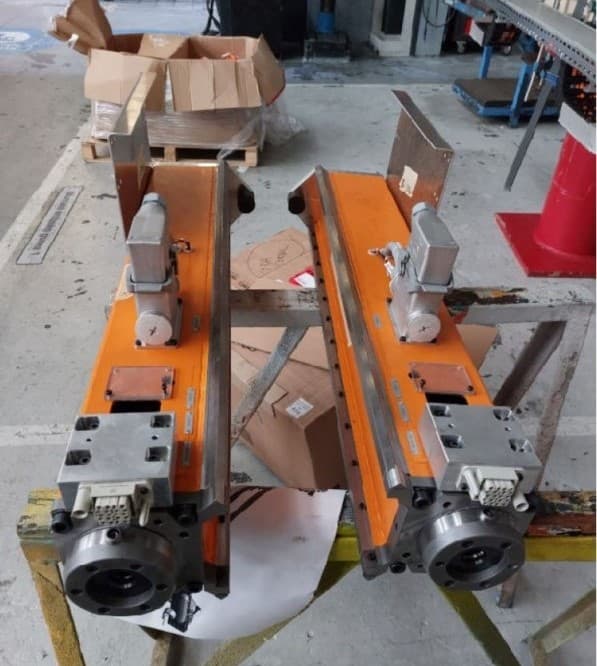

| Inner width clamping rails closed max. | 500 mm |
| Inner width clamping rails open max. | 1300 mm |
| Distance between tools, stroke | 0-800 mm |
| Electrical specifications | |
| Total power consumption | 200 kW |
| Mains power supply | 350 kVA |
| Mains voltage | 400 V |
| Mains frequency | 60 Hz |
| Dimensions / weights | |
| Space requirements length | 7500 mm |
| Space requirements width | 4800 mm |
| Height above floor level | 7360 mm |
| Height under floor level | 4000 mm |
| Total weight approx. | 250 ton |
| Attachments for presses | |
| Light barrier | yes |
| Cutting impact damping system | Yes |
| Autom. tool clamping device | Yes |
| Hydraulic overload protection | Yes |
| Transfer system | Yes |
| Openings in uprights | Yes |
| Opening in table | Yes |

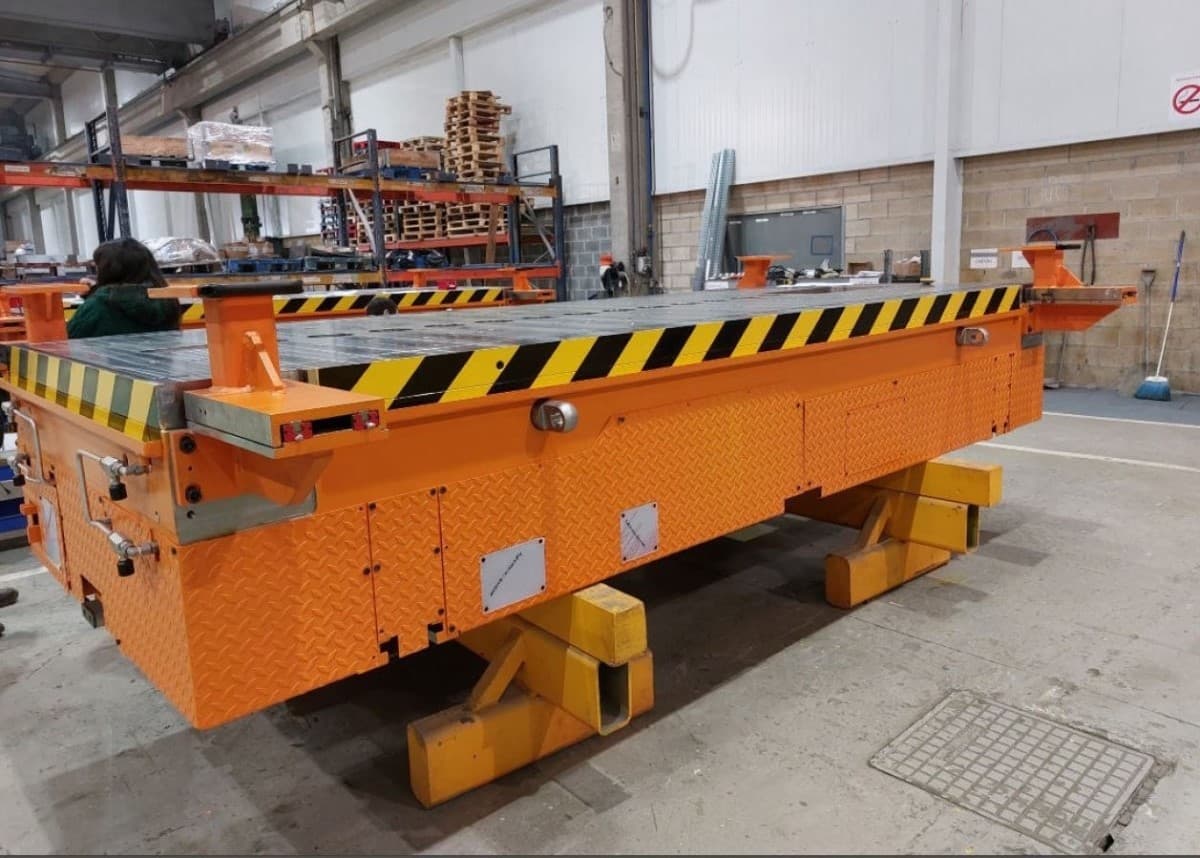

| Moving bolster | Yes |
| Number of tables | 2 |
