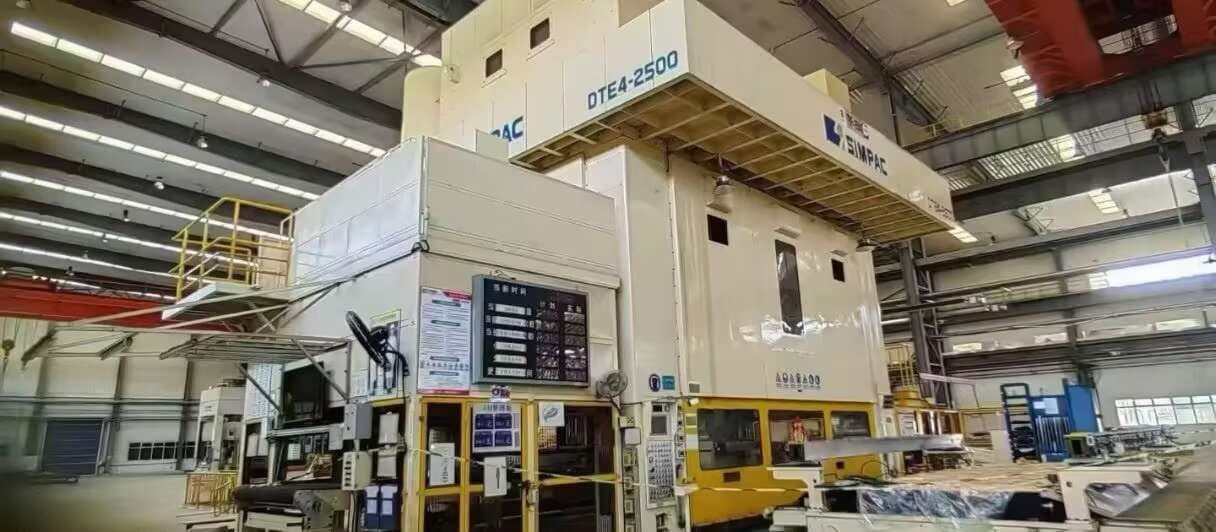

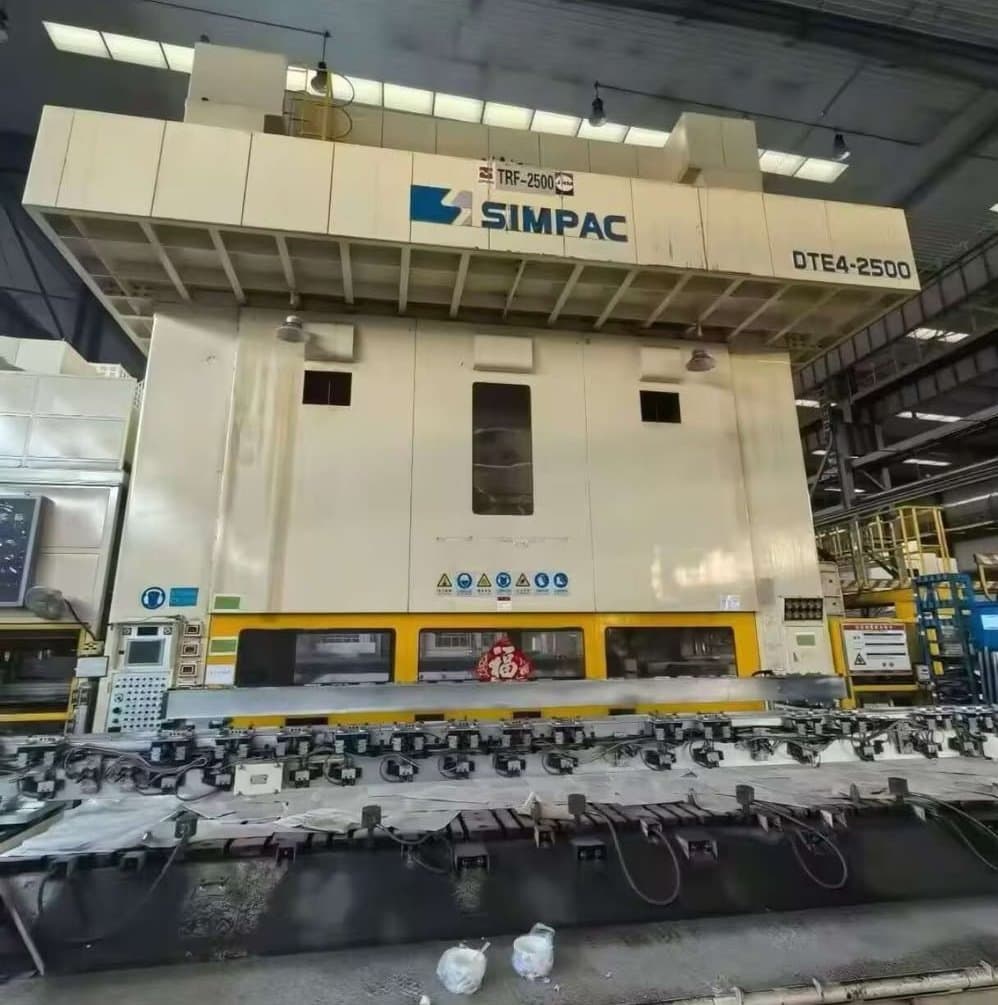

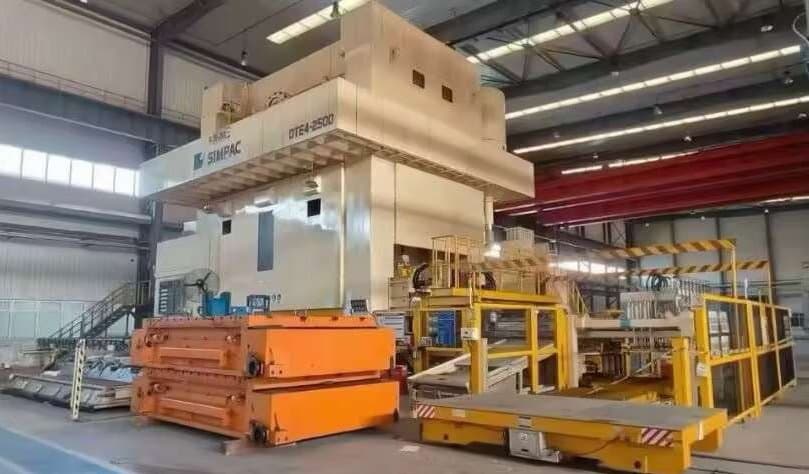

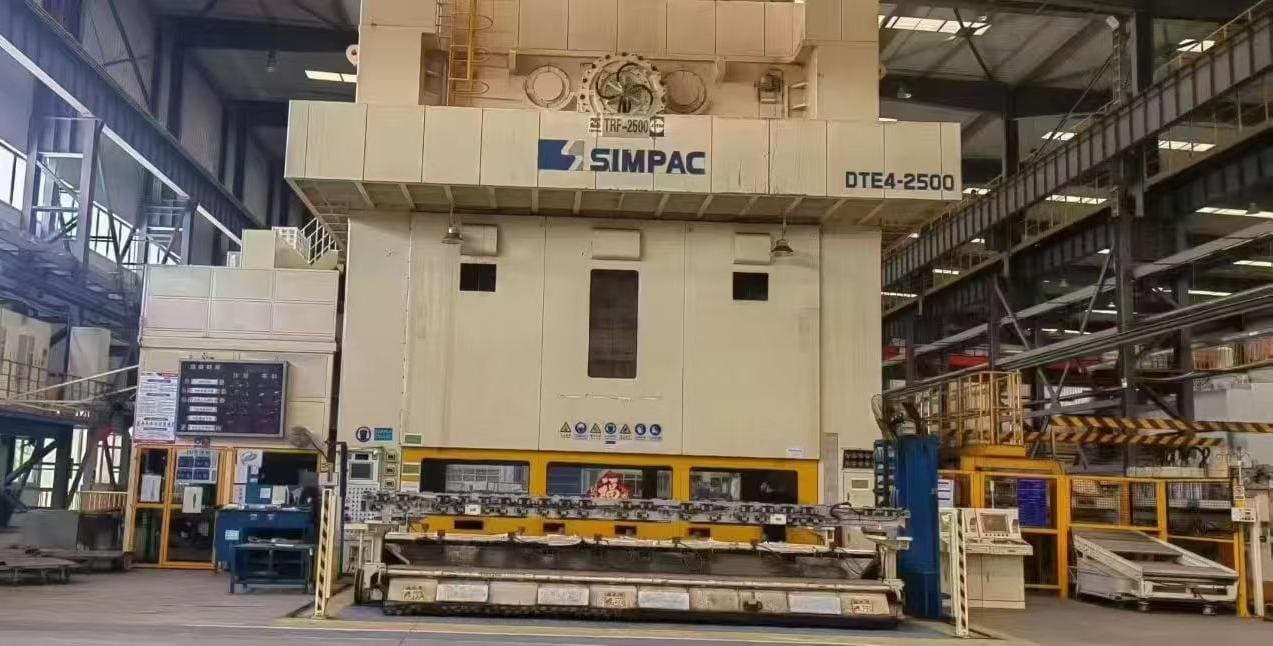

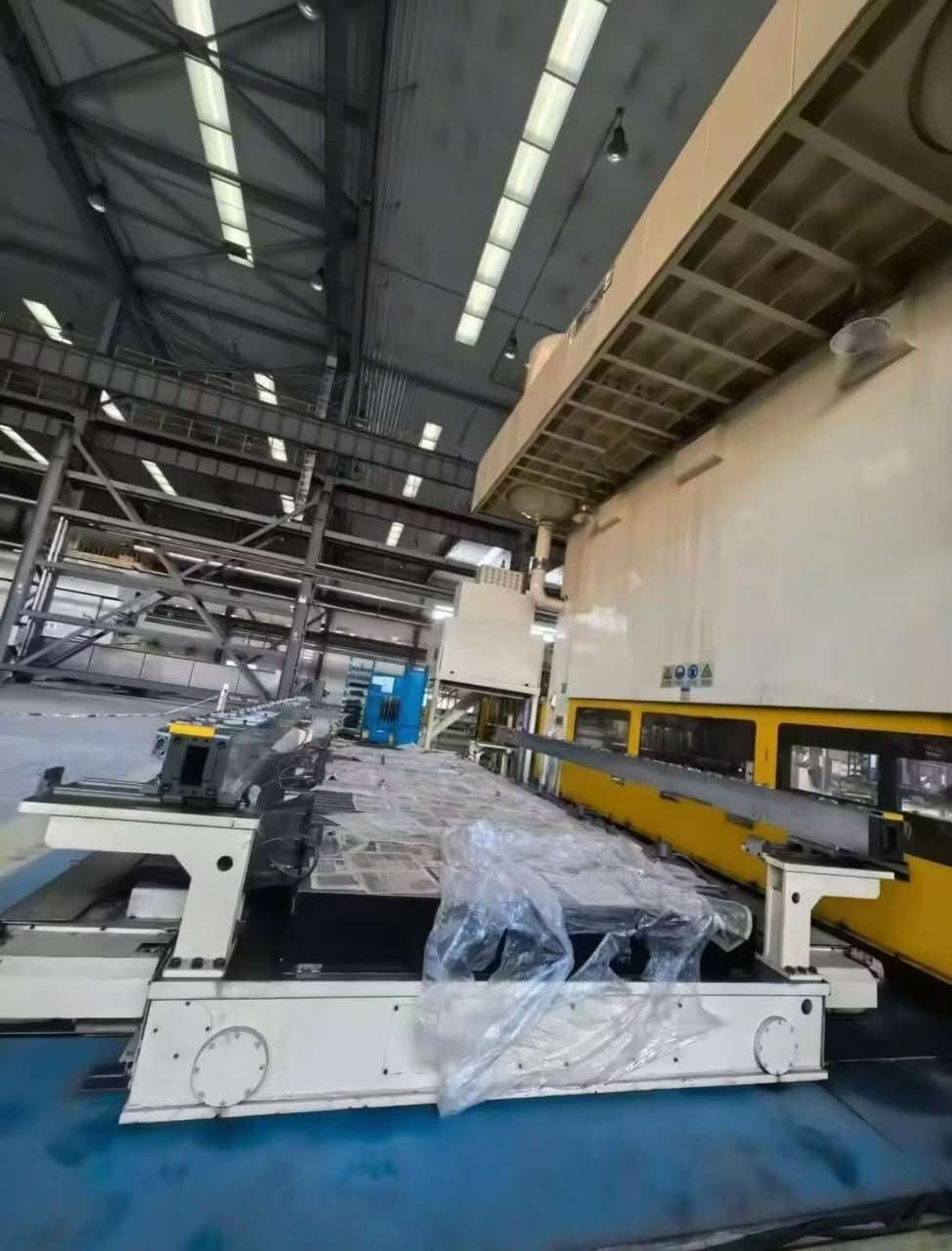

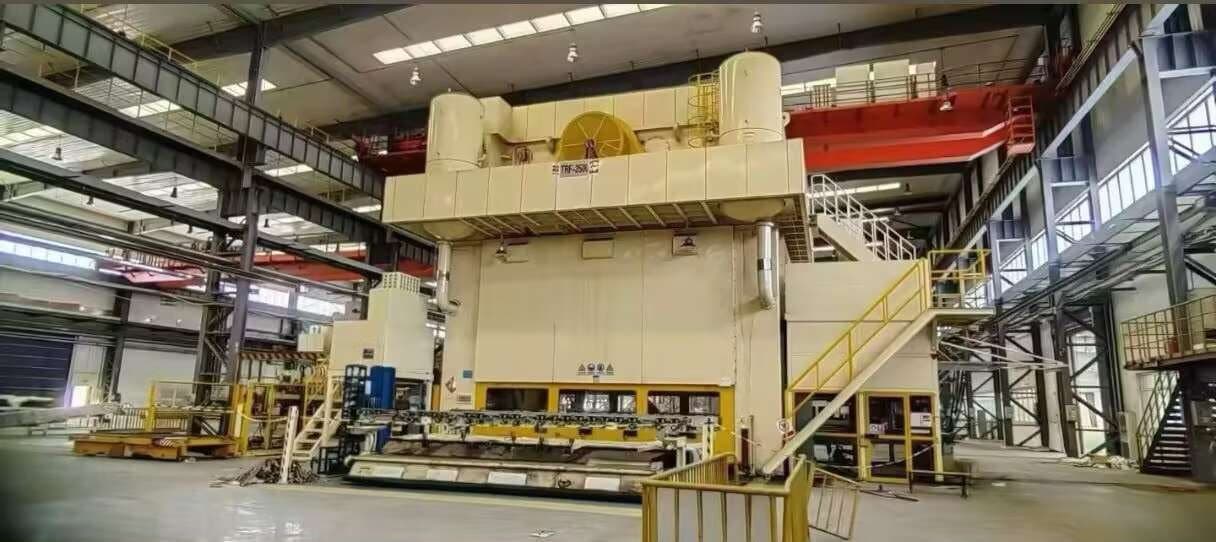

Pressa per stampaggio Simpac DTE4 2500 - 2500 ton
Specifiche tecniche (EN) -
Pressa per stampaggio Simpac DTE4 2500 - 2500 ton (ID: 76479)
| Type | Stamping press |
| Manufacturer | Simpac |
| Model | DTE4 2500 |
| Year of manufacture | 2015 |
| Nominal force | 25000 kN / 2500 ton |
| Stroke | 800 mm |
| SPM | 10–28 |
| Slide adjustment | 250 mm |
| Shut height | 1150 mm |
| Slide size | 6400 x 2300 mm |
| Table size | 6400 x 2300 mm |
| Bolster thickness | 300 mm |
| Main motor power | 500 kW |
| Adjustment motor power | 18,5 kW |
