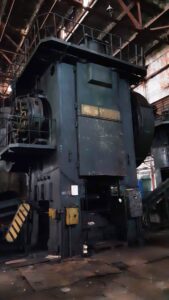

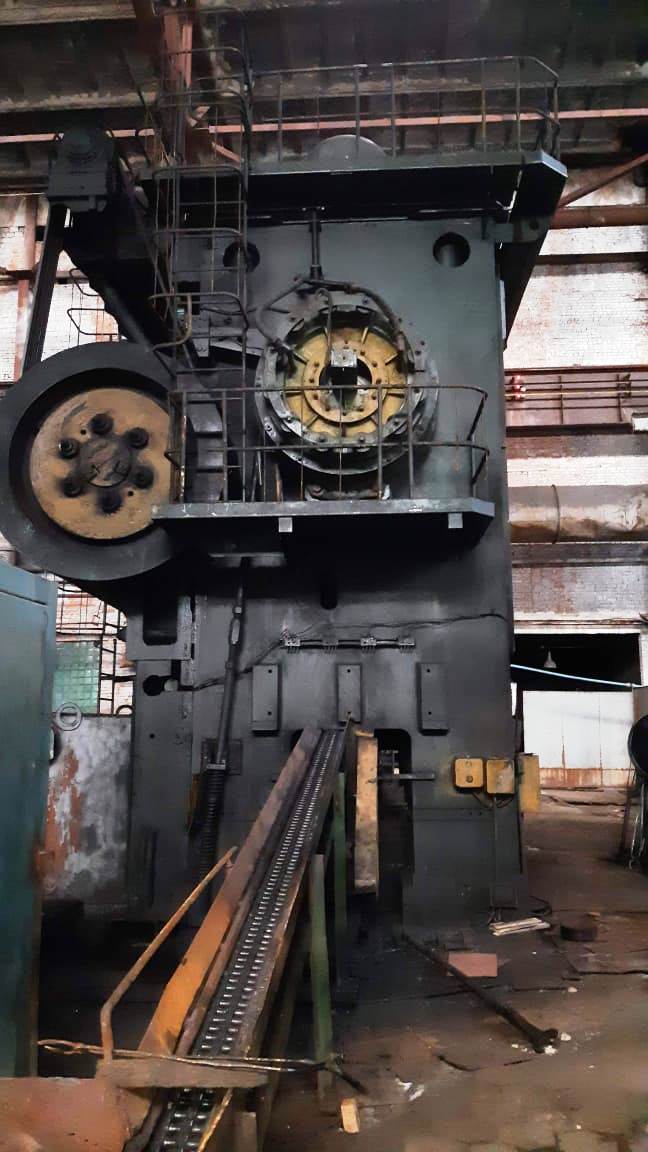

Pressa per stampaggio a caldo TMP Voronezh KB8046 - 4000 ton

Dabrox Offrire ID: S82505

Richiedi informazioni dettagliate su questa offerta:
- disponibilità, prezzo
- termini di pagamento / consegna
- specifiche, condizioni, foto ecc.

Specifiche (EN) - TMP Voronezh KB8046 (ID: S82505)

TypeHot forging press
ManufacturerTMP Voronezh
ModelKB8046
Rated capacity of the press 4000 ton
Stroke of the slide 400 mm
Number of slide strokes, 1 min.
Continuous 50
Single 14
Minimal distance between table and upper plate of the
slide in its extreme lower position
1200 mm
Value of adjustable distance between table and the slide 10 mm
Lower ejector in the table
Number of positions 2
Stroke value
Mechanical 20 mm
Pneumatic 50 mm
Force per one pusher
Mechanical 200 kN
Pneumatic 13 kN
Dimensions of the table (bolster plate)
Left to right 1680 mm
Front to back 1620 mm
Dimensions of the slide, not less
Left to right 1470 mm
Front to back 2000 mm
Distance between the uprights in the light 1770 mm
Dimensions of openings in the press uprights
Width 1040 mm
Height 1100 mm
Dimensions of the press
Left to right 6628 mm
Font to back 5700 mm
Height of the press above floor level 7830 mm
Weight of the press 359000 kg
Offerta commerciale (in vendita) - Pressa per stampaggio a caldo TMP Voronezh KB8046 - 4000 ton (ID:S82505). Tutti i dettagli di questa offerta (costo, termini di pagamento e consegna) possono essere ottenuti dal nostro responsabile facendo clic sul pulsante "Invia richiesta" . Possiamo anche aiutare a trovare altre apparecchiature. Invia richiesta
