Pressa per sbavatura Erfurt PKZe 1250 - 1250 ton

Dabrox Annuncio ID: 76348

Richiedi informazioni dettagliate su questa offerta:
- disponibilità, prezzo
- condizioni di pagamento/consegna
- caratteristiche, stato, foto, ecc.

* Campi obbligatori

Specifiche tecniche (EN) -

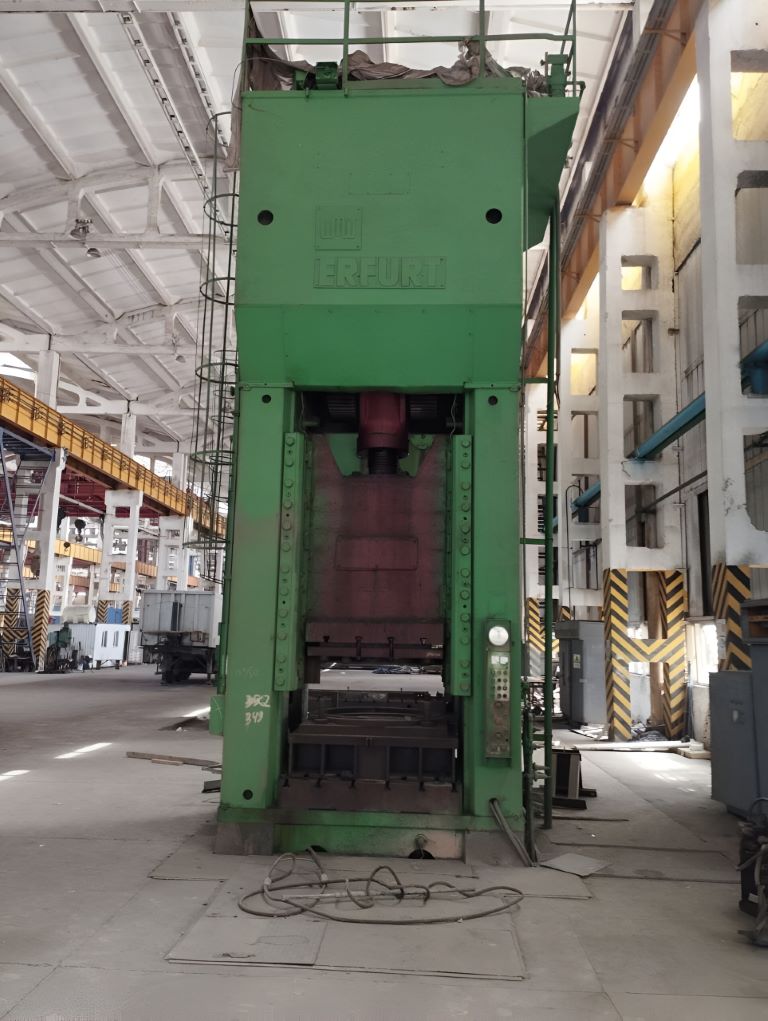

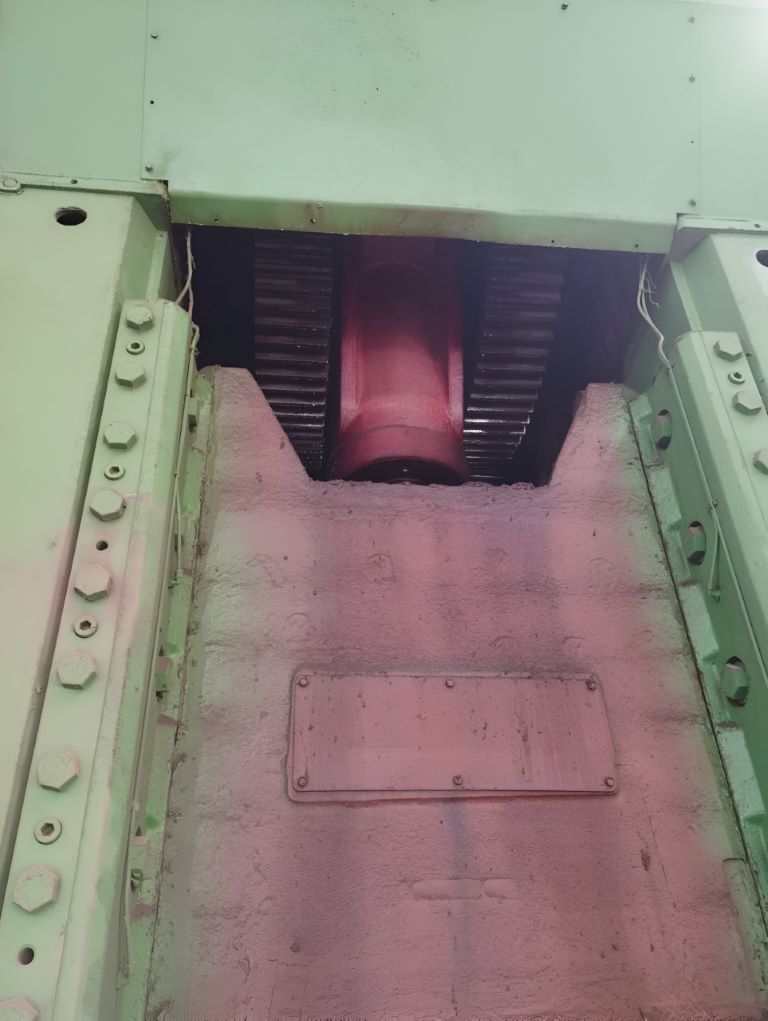

Pressa per sbavatura Erfurt PKZe 1250 - 1250 ton (ID: 76348)

TypeTrimming press
ManufacturerErfurt
ModelPKZe 1250
Max. ram force 1250 ton
Slide stroke 500 mm
Slide adjustment 215 mm
Shut height 860 mm
Bed area 1600 x 1850 mm
Slide area 1300 x 1400 mm
Opening in the bed 1100 x 1100 mm
Main motor rating 90 kW
SPM 8
Cushion force in the bolster 2000 kN
Cushion stroke 200 mm
Height above floor 7900 mm
Press weight 130 ton
