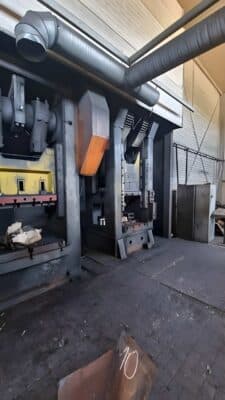

Pressa per sbavatura Smeral LKO 500 S - 500 ton
Specifiche tecniche (EN) -

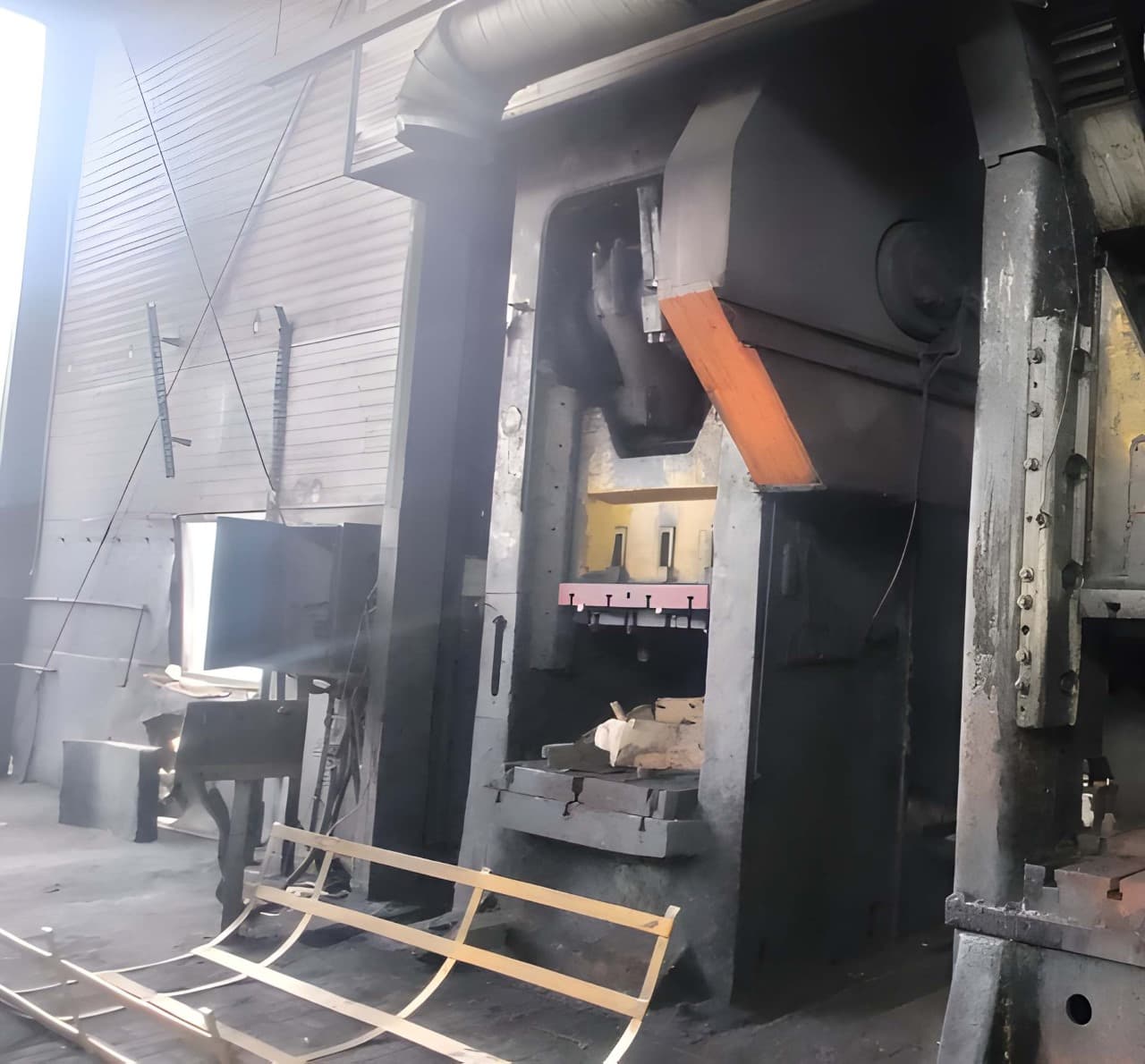

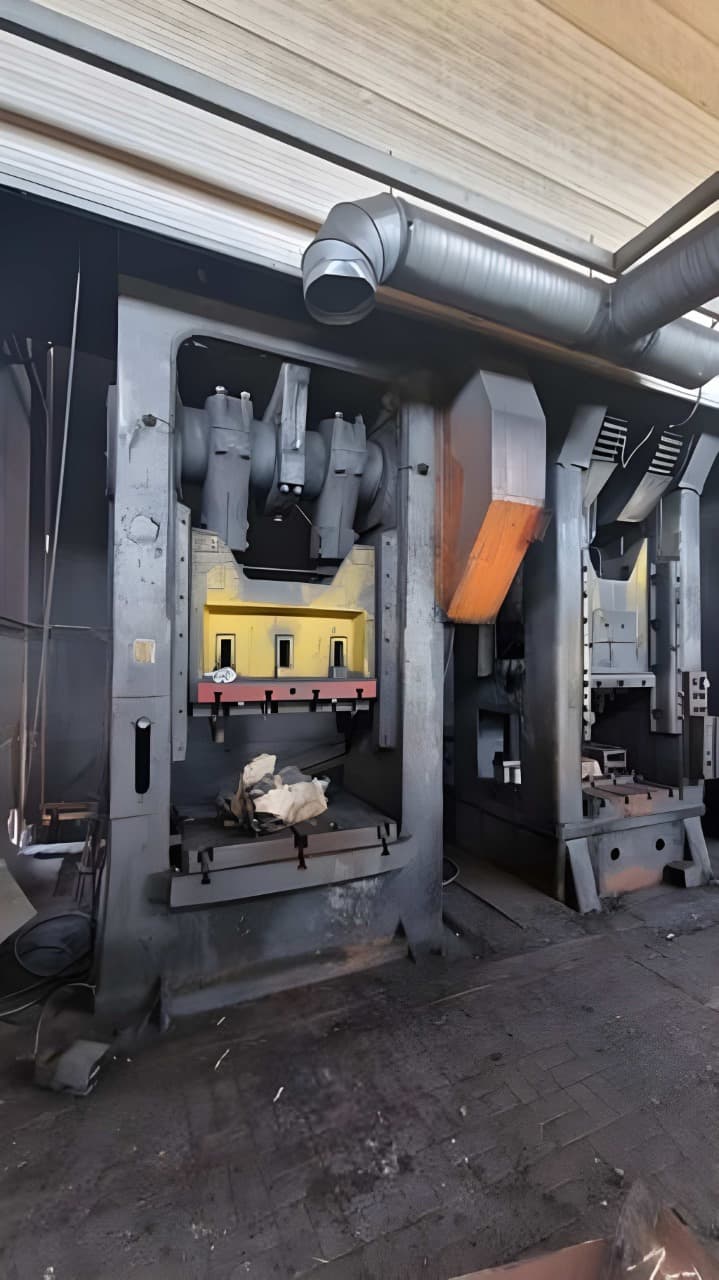

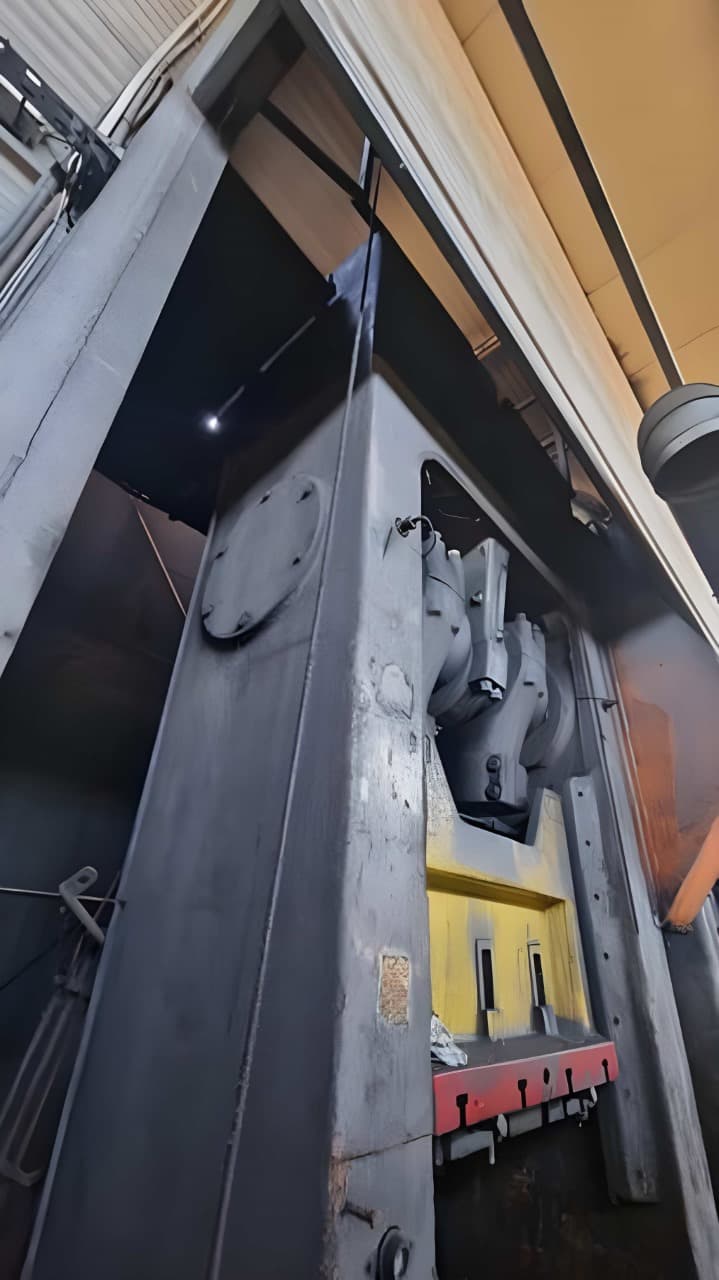

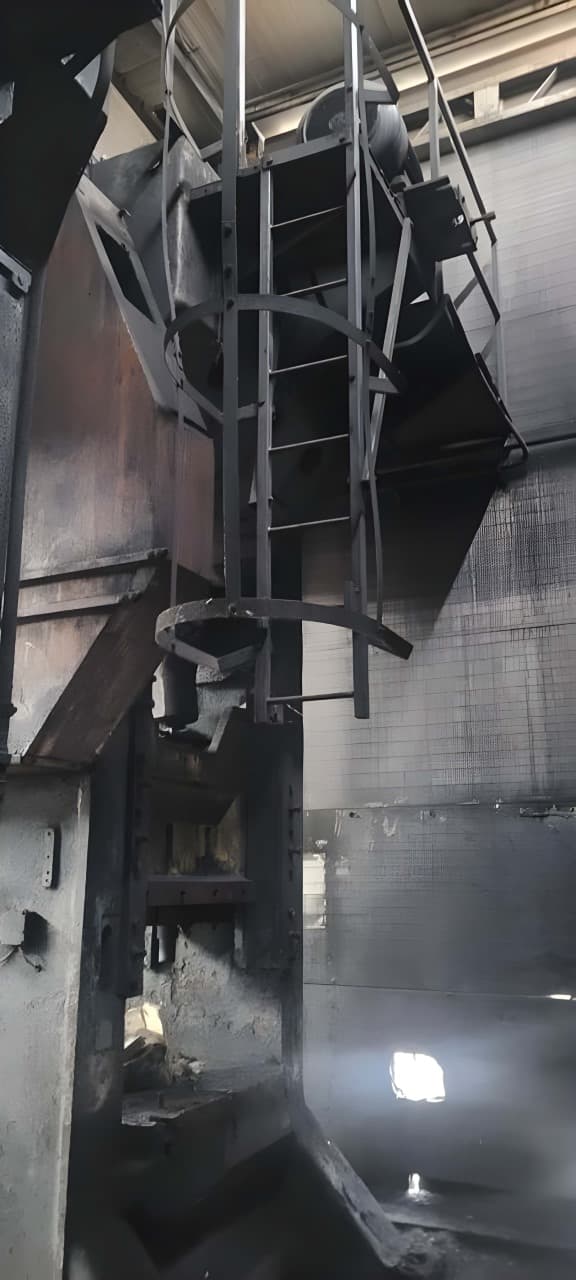

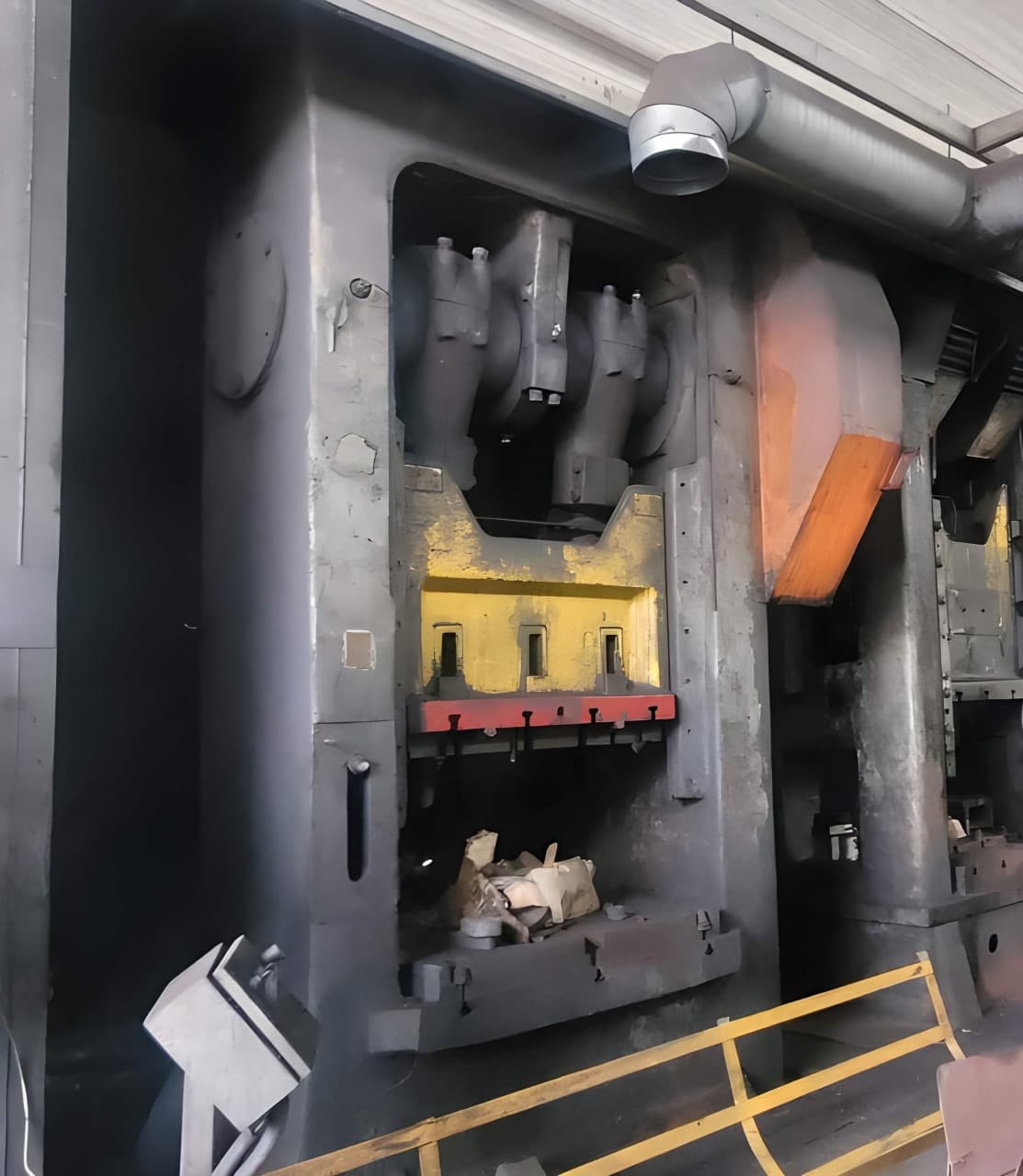

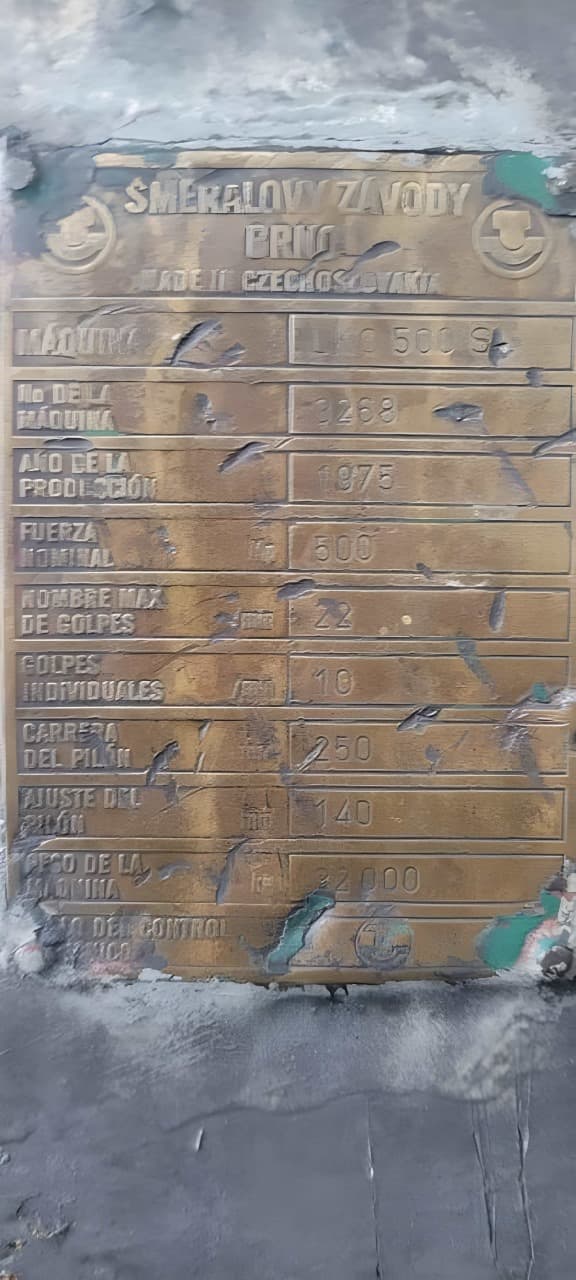

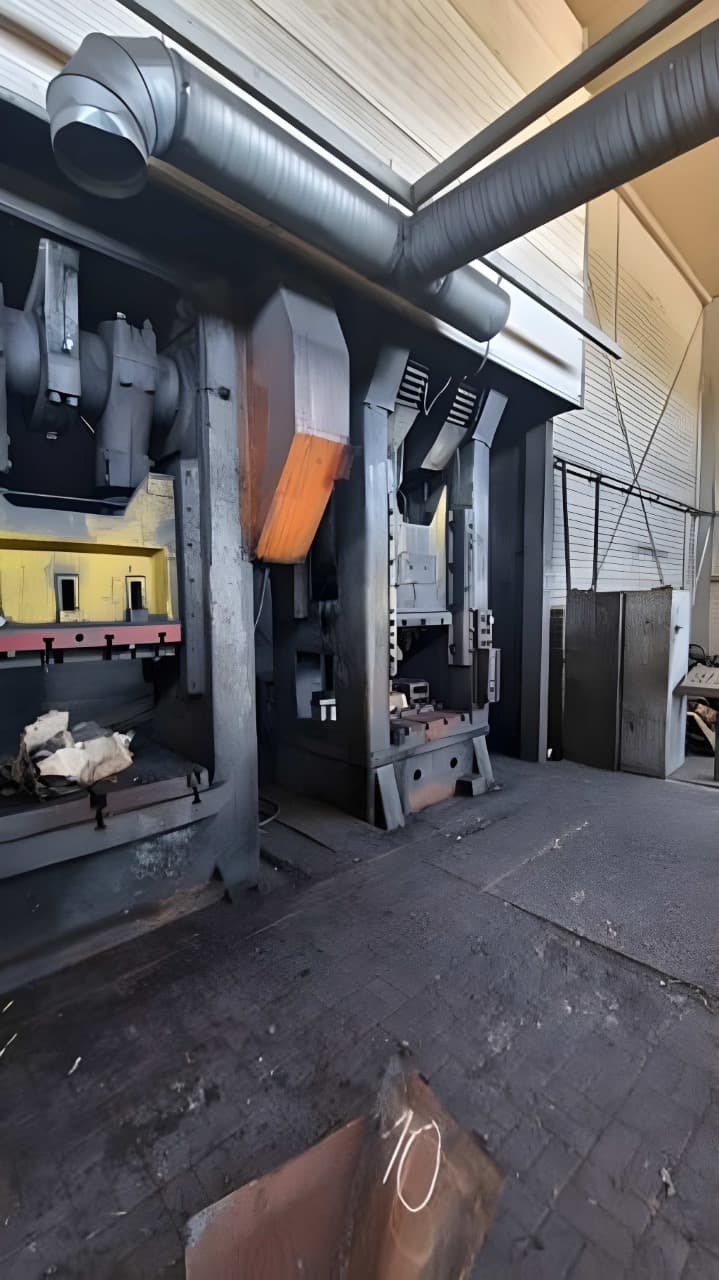

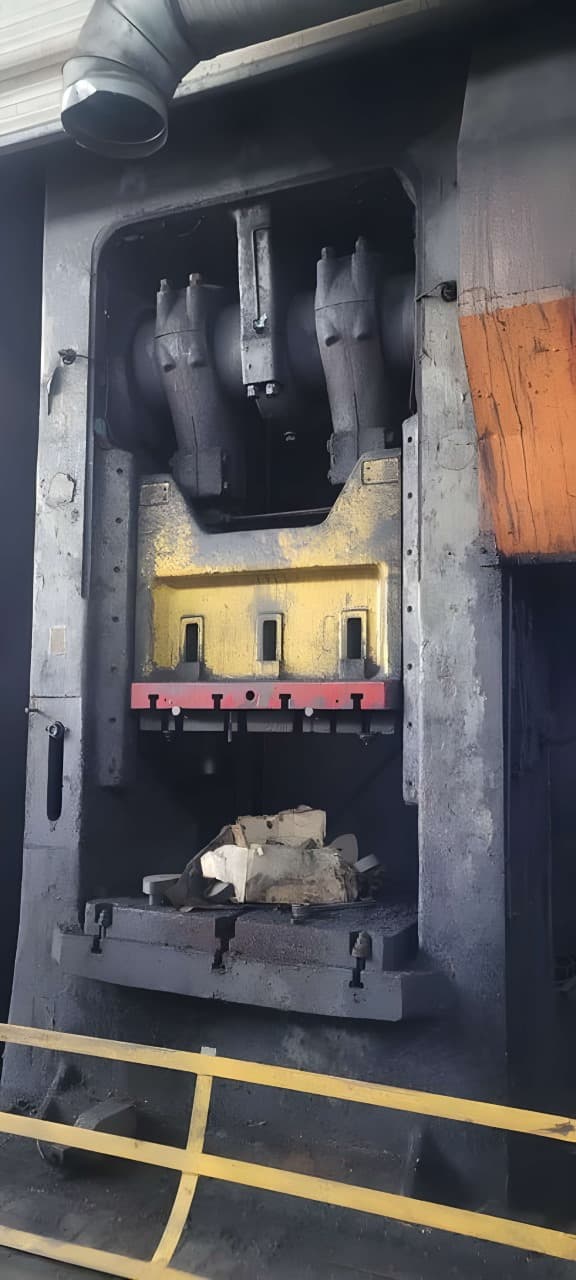

Pressa per sbavatura Smeral LKO 500 S - 500 ton (ID: 76500)
| Type | Trimming press |
| Manufacturer | Smeral |
| Model | LKO 500 S |
| Year of manufacture | 1975 |
| Nominal force | 5000 kN / 500 ton |
| Stroke | 250 mm |
| Slide adjustment | 140 mm |
| Shut height | 680 mm |
| SPM continuous | 22 |
| SPM single | 10 |
| Passage width below guides | 1320 mm |
| Distance between guides | 1150 mm |
| Maximum distance table-ram | 870 mm |
| Table size | 1220 x 1100 mm |
| Hole in table | 500 x 500 mm |
| Slide size | 1120 x 710 mm |
| Hole in slide | 65 mm |
| Motor power | 30 kW |
| Overall dimensions | 3100 x 2200 x 5320 mm |
| Weight | 32000 kg |
