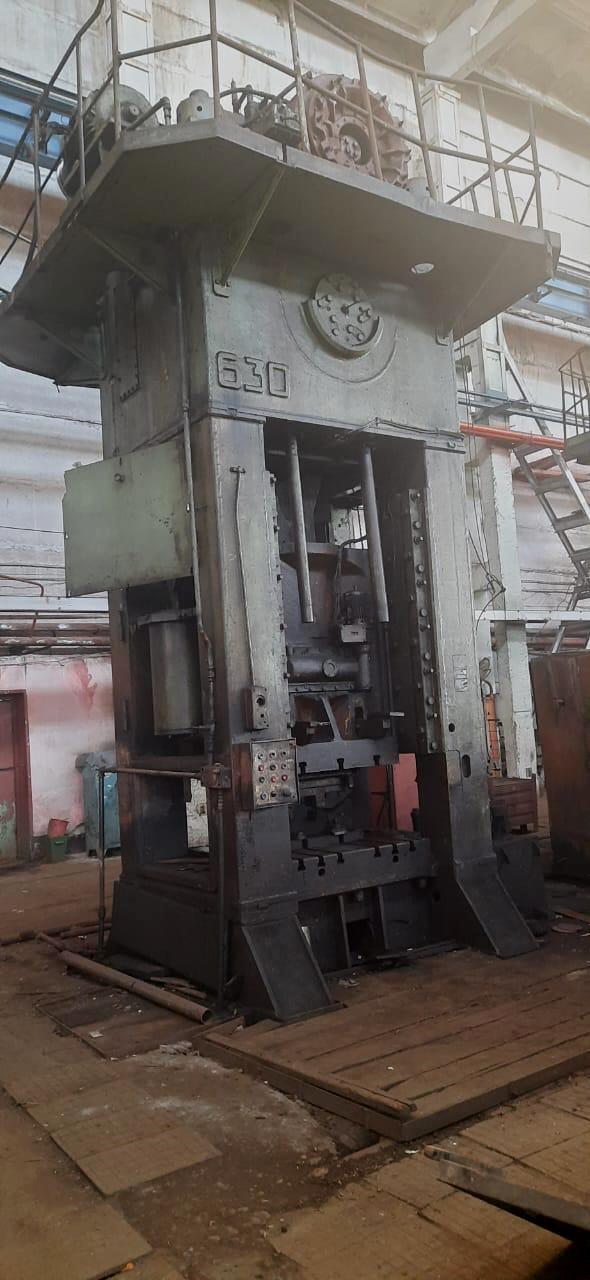

Pressa per sbavatura TMP Voronezh K2538 - 630 ton
Specifiche tecniche (EN) -
Pressa per sbavatura TMP Voronezh K2538 - 630 ton (ID: 76155)
| Type | Trimming press |
| Manufacturer | TMP Voronezh |
| Model | K2538 |
| Maximum force | 630 tons |
| Slider stroke length | 320 mm |
| Number of courses of a slider per minute | 20 |
| Max. distance between bolster and ram | 800 mm |
| Adjustment | 180 mm |
| Table size | 1250 x 1250 mm |
| Slider overall dimensions | 1200 x 1000 mm |
| Aperture in a table | 800 x 800 mm |
| Window dimensions in cheeks | 750 x 400 mm |
| Press overall dimensions | 3659 x 3680 x 6370 mm |
| Press weight | 55500 kg |
